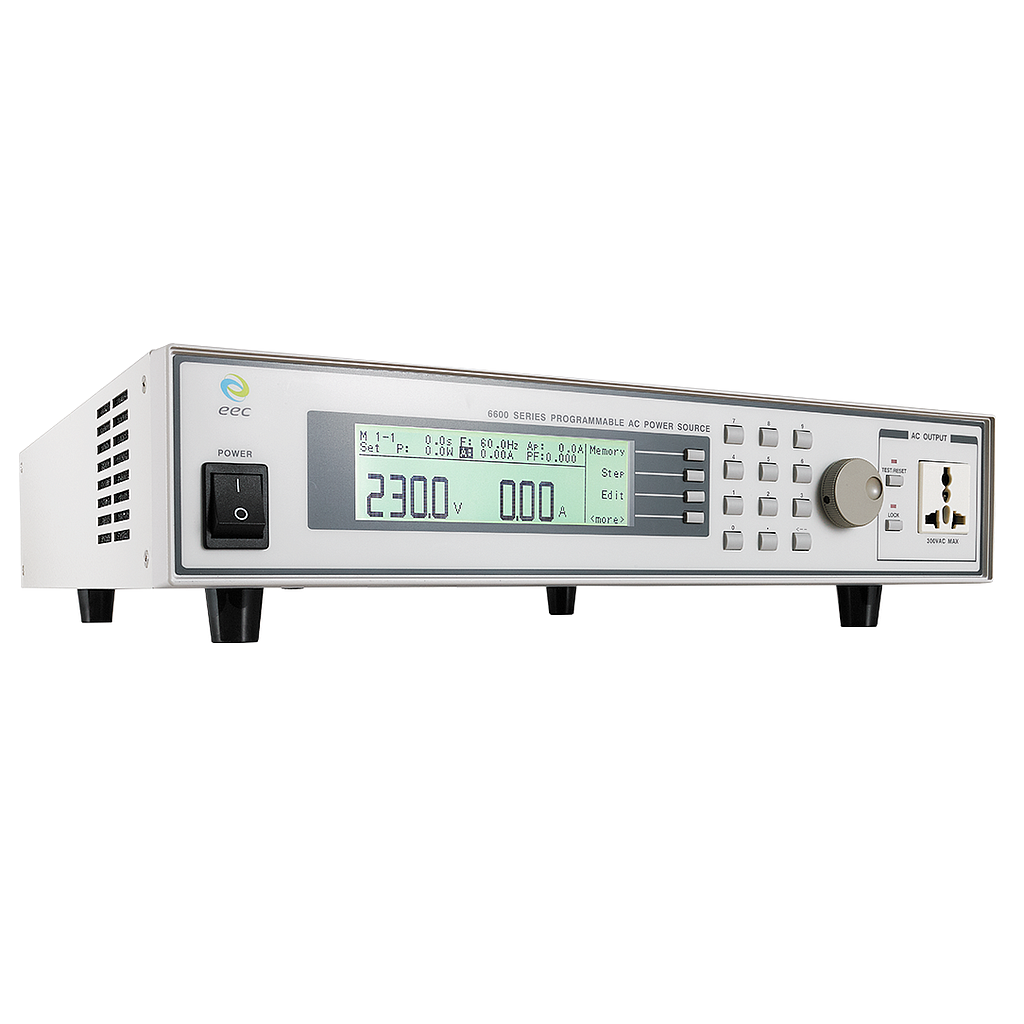

EEC 6620 可编程交流电源 (2kVA; 300V; 9.2A)

AC OUTPUT

• Phase: 1Ø

• Power Rating: 2kVA

• Voltage:

Range: 0 - 300V

Resolution: 0.1V

Accuracy: ±(1% of setting + 5 counts)

• Max. Current rms (0 - 150Vac): 18.4A

• Max. Current (0 - 300Vac): 9.2A

• Frequency:

Range: 40-500Hz Full Range Adjust

Resolution: 0.1Hz at 40.0 - 99.9 Hz, 1Hz at 100 - 500Hz

Accuracy:  ±0.03% of setting

• Total Harmonic Distortion (THD): < 0.3% at 110/220V & 50/60Hz (Resistive Load)

• Inrush Current: 4 times rated Current(r.m.s)

• Crest Factor: 3 times rated Current(r.m.s)

• Line Regulation: ± 0.1V

• Load Regulation: ±(0.5% of output + 0.5V) at Resistive Load

DC OUTPUT (Optional)

• Power rating: 1kW

• Voltage

Range: 0-200/0-400V

Resolution: 0.1V

Accuracy: ±(1% of reading + 5 counts)

• Max. Current (r.m.s)

0 - 200V: 9.2A

0 - 400V: 4.6A

• Ripple and Noise (r.m.s): Range: L < 250mV; H < 400mV

• Ripple and Noise (p-p): < 2Vp-p

• Line Regulation: ± 0.1V

• Load Regulation: ±(0.5% of output + 0.5V) at Resistive Load

INPUT

• Phase: 1Ø

• Voltage: 110/220Vac±10%

• Max Current: 20A

• Frequency: 47 - 63Hz

• Power Factor: 0.7

GENERAL

• Interface: Standard USB & RS232, Optional GPIB, Ethernet, PLC Remote Input Card

• Dimensions (WxHxD, mm): 430 x 89 (111.5) x 500

• Weight: 31.5kg
