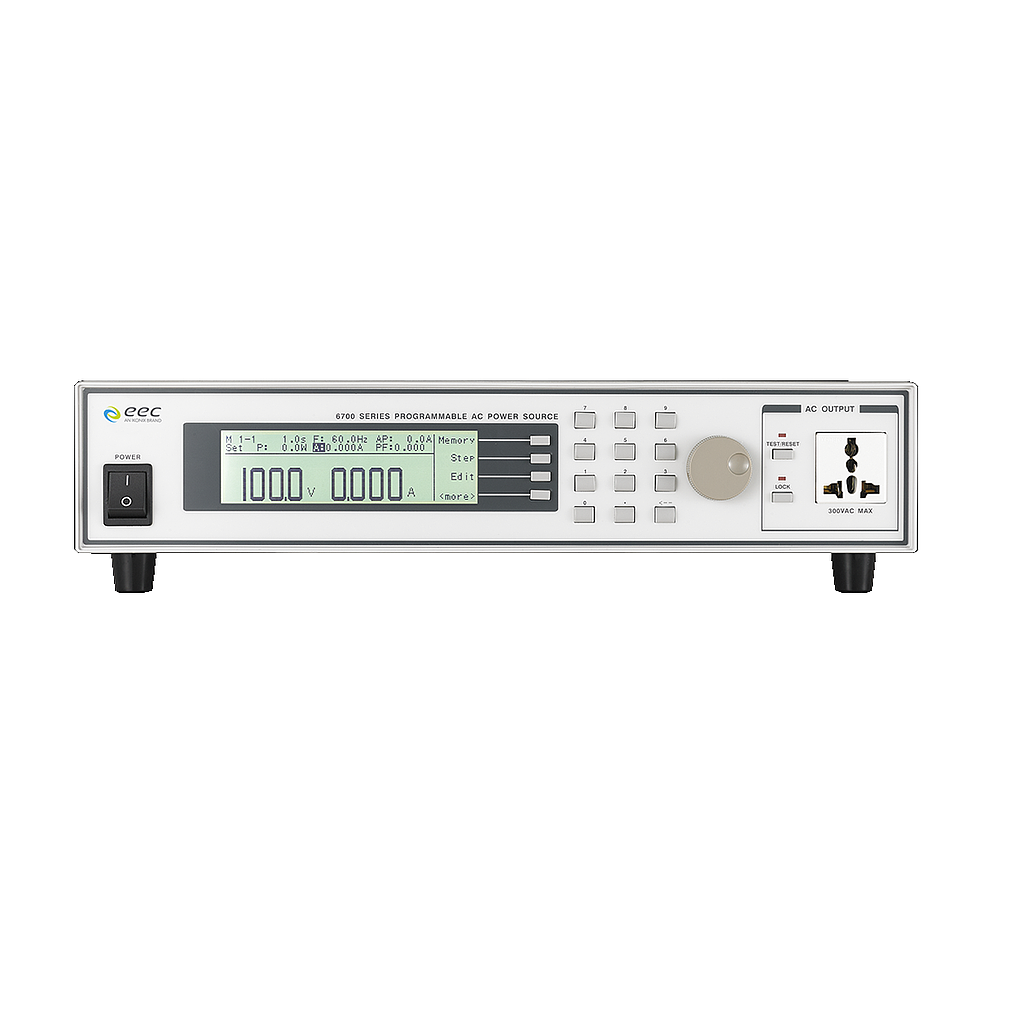

EEC 6705 线性可编程交流电源 (500VA/0-300V/45-500Hz, 2 years warranty)

Product available in APAC region only

AC Output:

Max. Power: 500VA

Max. Current (0 - 150Vac): 4.2A

Max. Current (0 - 300Vac): 2.1A

Phase: 1Ø/2W

Frequency Range:  45 - 500Hz Full Range Adjust

Total Harmonic Distortion (THD): < 0.2%

Crest Factor:  ≥4

Input:

Phase: 1Ø

 Voltage: 115 / 230Vac±15%

Frequency:  47 - 63Hz

Power Factor:  >0.7

General:

Efficiency: ≧ 40% (at Full load)

Dimensions (WxHxD, mm): 430x89x400

 Weight: 25kg
