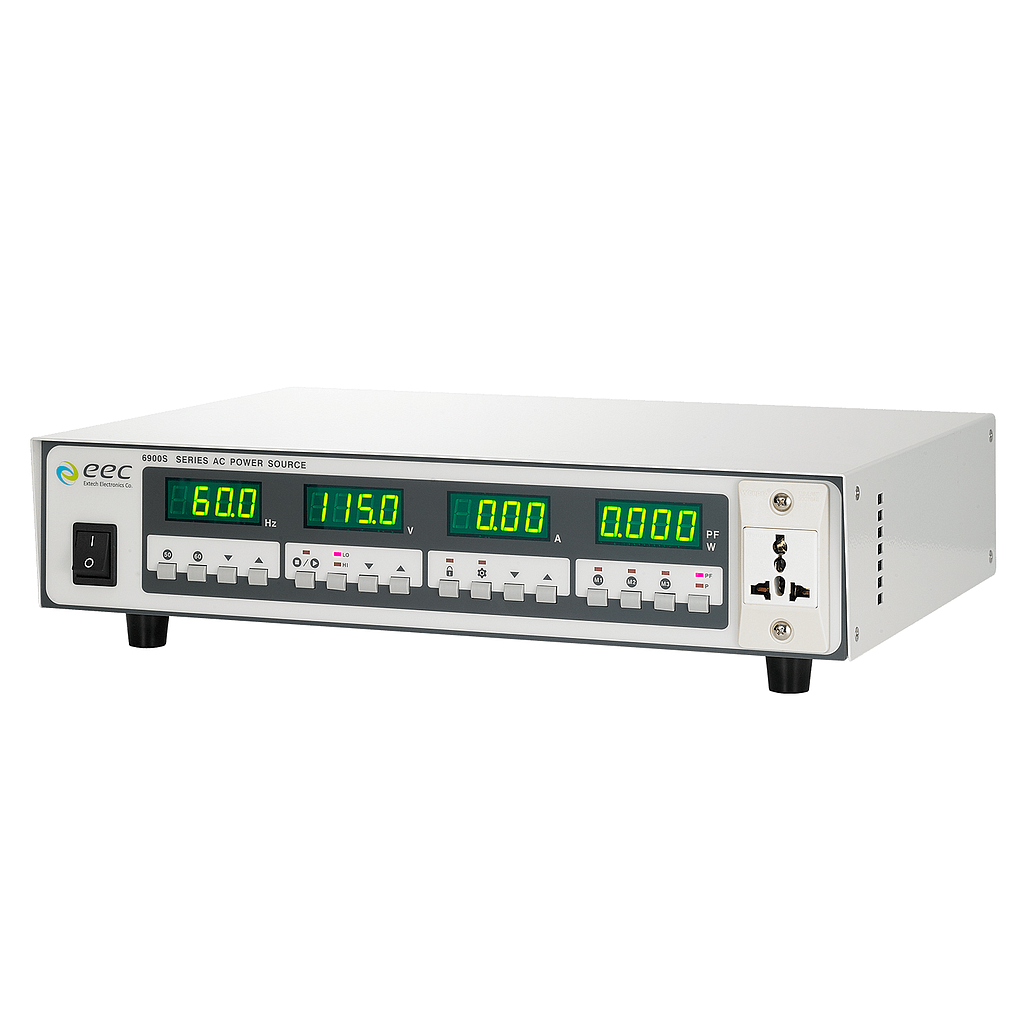

EEC 6910S 交流电源 (1000VA; 310V; 4.6A)

AC OUTPUT

• Phase: 1Ø

• Max. Power: 1000VA

• Voltage:

Range: 0-310V

Resolution: 0.1V

Accuracy: +/-(1% of setting + 0.1%f.s)

• Max. Current (0 - 155Vac): 9.2A

• Max. Current (0 - 310Vac): 4.6A

• Frequency:

Range: 40-500Hz Full Range Adjust

Resolution: 0.1Hz at 40.0-99.9, 1 Hz at 100 - 450Hz

Accuracy: +/-0.03% of setting

• Total Harmonic Distortion (THD): <0.3% at 110/220V & 50/60Hz (Resistive Load)

• Crest Factor: ≥3

• Line Regulation: +/-0.1V

• Load Regulation: +/- (0.5% of output + 0.5V) at Resistive Load)

INPUT

• Phase: 1Ø

• Voltage: 110/220Vac±10%

• Max Current: 20A / 10A

• Frequency: 47 - 63Hz

• Power Factor: >0.67

GENERAL

• Display: Green LED

• Efficiency: ≧ 78% (at Full load)

• Dimensions (WxHxD, mm): 430x89x400

• Weight: 18.2kg
