Elcometer J408--268 三角光泽度及影像清晰度(DOI)仪

  • 制造商: ELCOMETER
    Model: J408--268
    • 报价要求 报价要求
  • Price (exclude tax) 128,049,000 VND
    Price (include tax) 140,853,900 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Easy to use menu structure: English, Spanish, French, Italian, German, Chinese
Bright colour screen: Adjustable brightness, 6 button touch sensitive interface
On screen statistics: x, σ, maximum & minimum value
Gauge memory; number of readings: up to 999 readings & curves
Repeat measurement mode: user definable: 2, 5 or 10 seconds
Measurement Range  (Gloss/Haze/DOI/ RIQ):
+  20°: 0-2,000GU/0-2,000GU/0-100 DOI/0-100 RIQ
+ 60°: 0-1,000GU/0-2,000GU/0-100 DOI/0-100 RIQ
+ 85°: 0-150GU/0-2,000GU/0-100 DOI/0-100 RIQ
Resolution (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.1GU/0.1HU/0.1/0.1GU
Repeatability (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.2GU/0.2HU/0.2/0.2GU
Reproduceability (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.5GU/0.5HU/0.5/0.5GU
Dimension (H x W x D): 65 x 140 x 50mm
Weight: 790g (1lb 12oz)
Packing List: Elcometer 408 Gloss & DOI Meter, high gloss calibration tile with calibration certificate, gloss tile cleaning cloth, mains charger (UK, EU & US), transit case, USB cable, ElcoMaster® software and operating instructions.

Details

Manual

Datasheet

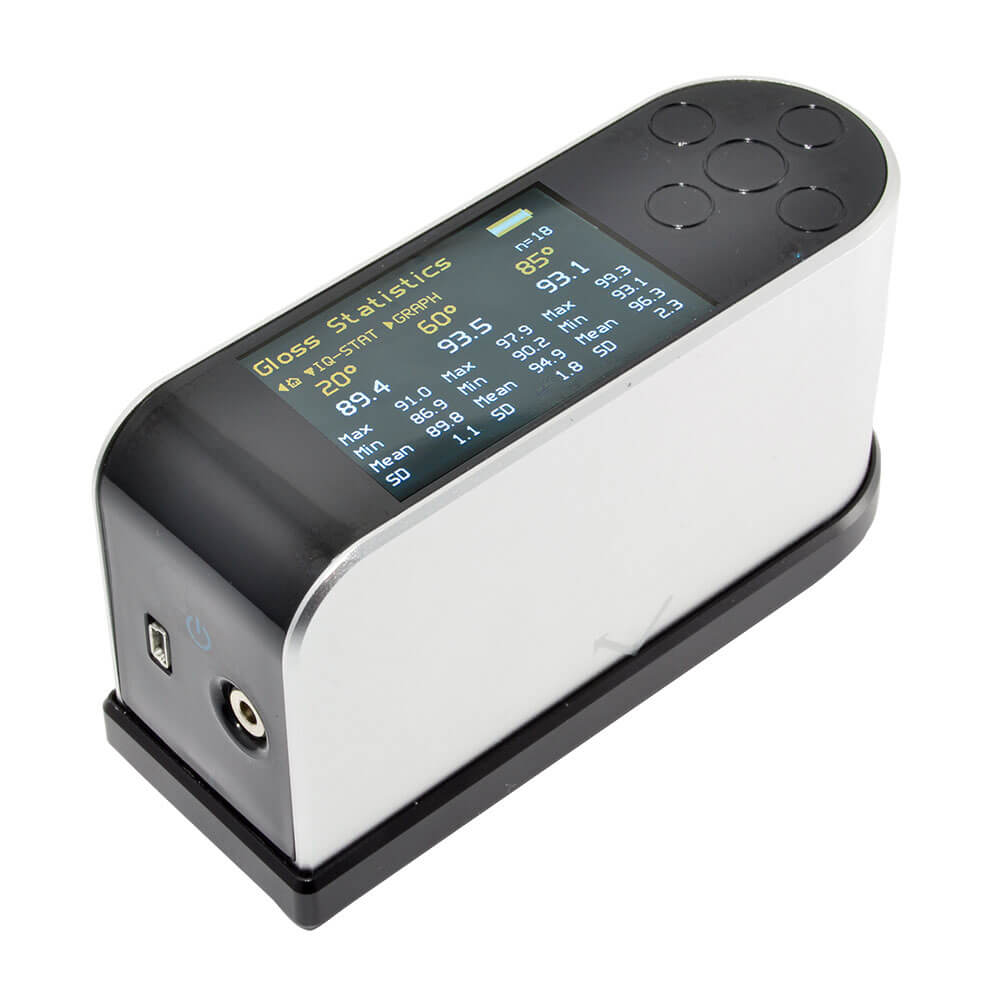

Elcometer 408 Triple Angle Gloss & DOI Meter

The Elcometer 408 provides the very latest in gloss measurement technology, providing accurate gloss, haze and distinctiveness of image (DOI) analysis in a single reading.

Key features of the Elcometer 408 Gloss Meter include:

Accurate

  • Fast and simultaneous measurement of gloss, haze, DOI, Rspec, RIQ and Goniophotometric profiles
  • Each instrument is supplied with a Calibration Certificate

Simple

  • Bright, easy to read LCD screen displays the gloss value, statistics & graphs
  • Display measurements are user definable
  • Each set of readings is time & date stamped

Flexible

  • Triple (20/60/85°) angle for maximum accuracy and resolution in all gloss applications
  • Bluetooth® or USB download to ElcoMaster® data management software for instant analysis

Durable

  • Robust aluminium construction ensures optical stability
  • 17hrs+ continuous operation or 20,000+ readings
  • Compact & portable instrument with integrated tile holder

Efficient

  • Easy menu-driven user interface in multiple languages
  • Clear, illuminated display showing up to five parameters on screen
  • On board trend analysis with gloss and image quality (IQ) values

Powerful

  • On board memory for 999 readings with full goniophotometric profiles
  • Internal battery is fully rechargeable in 2.5 hours



Elcometer 408 Triple Angle Gloss & DOI Meter

Technical Specification

Product Features

Easy to use menu structure

English, Spanish, French, Italian, German, Chinese

Bright colour screen; with permanent back light

Adjustable brightness, 6 button touch sensitive interface

User definable measurement display

Scratch & solvent resistant display

Mains or USB power supply

Calibration certificate

Data output

USB; to PC

Bluetooth®*: to PC or Android™ mobile device#

On screen statistics

x, σ, maximum & minimum value

ElcoMaster® software & USB cable

Date and time stamp

Gauge memory; number of readings

up to 999 readings & curves

Repeat measurement mode

user definable: 2, 5 or 10 seconds

Delete last reading

Standard & fixed batch sizes

Trend, gloss & image graphs



Measurement modes



Gloss (GU): 20°, 60°, 85°; Haze (HU) & Haze Log (HU Log); Distinctiveness of Image (DOI);

Peak Reflectance (Rspec); Reflected Image Quality (RIQ) & Goniophotometric Profile





Technical Specification

Part Number

Description

Certificate

J408--268

Elcometer 408 Triple Angle Gloss & DOI Meter (20, 60 & 85 Degree)

Power Supply

Rechargeable Lithuim Ion gives 17+ hours / 20,000 readings

Recharge Time

USB 4.5 hours, Mains Charger 2.5 hours



Gloss

Haze

DOI

RIQ

Goniophotometric

Measurement Range

20°: 0-2,000GU;
60°: 0-1,000GU;
85°: 0-150GU

0-2,000GU

0-100 DOI

0-100 RIQ

-

Resolution

0.1GU

0.1HU

0.1



0.1GU

Repeatability

0.2GU

0.2HU

0.2



0.2GU

Reproduceability

0.5GU

0.5HU

0.5



0.5GU

Peak Specular Reflectance

-20° ± 0.09375°

Dimensions (H x W x D)

65 x 140 x 50mm (2.5 x 5.5 x 1.9”)

Weight

790g (1lb 12oz)

Packing List

Elcometer 408 Gloss & DOI Meter, high gloss calibration tile with calibration certificate, gloss tile cleaning cloth, mains charger (UK, EU & US), transit case, USB cable, ElcoMaster® software and operating instructions.
