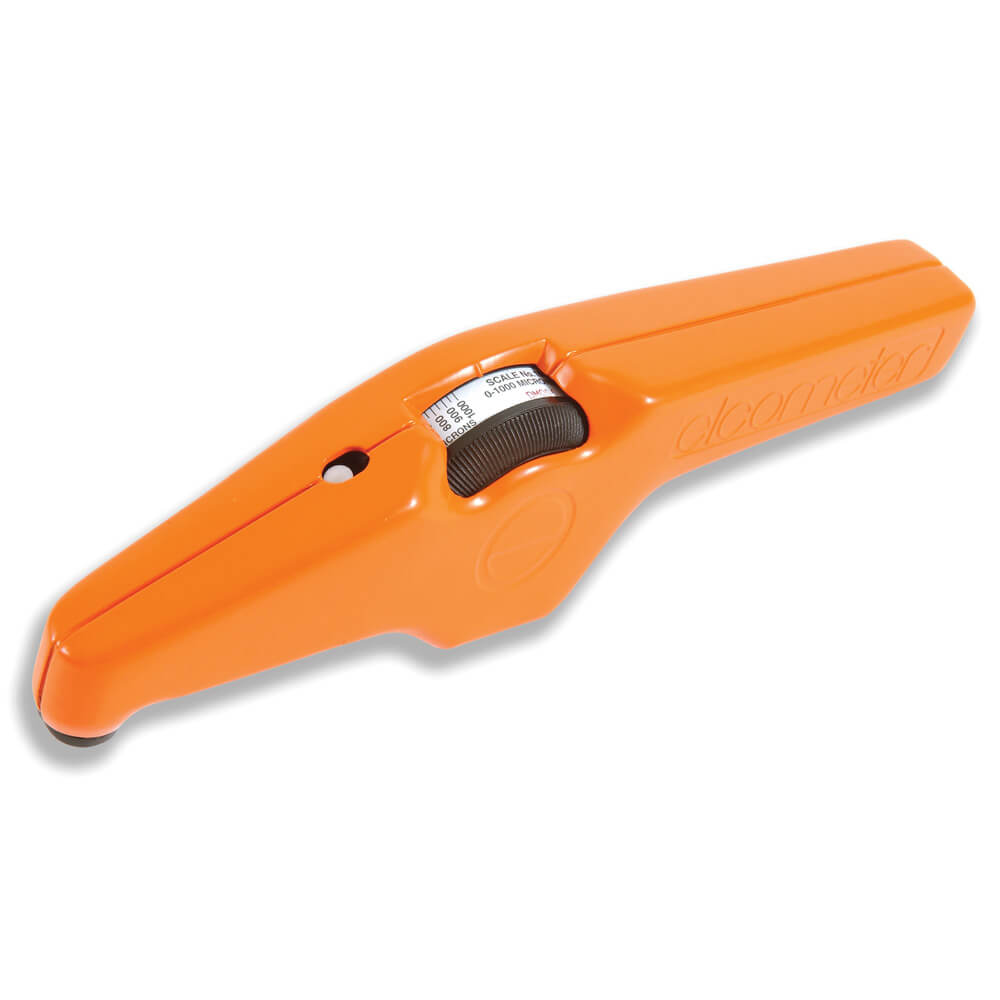

ELCOMETER 211 Mechanical Coating Thickness Gauge (0-40mils)

Range: 0 - 40mils

Accuracy: ±5% of the reading or ±2.5µm/0.1mil (whichever is the greater)

Substrate Thickness: 0.4mm (16mils) minimum

Measurement Area: 30mm (1.18”) Diameter minimum

Measurement Diameter: 20mm (0.8”) minimum

Edge Effects: Must be at least 6mm (0.24”) from edge

Dimensions: 200 x 60 x 30mm (7.8 x 2.4 x 1.2”)

Packing List: Elcometer 211, calibration foil set, carry pouch, neck harness and operating instructions
