Elcometer D266 ---- 4 电火花检漏仪

  • 制造商: ELCOMETER
    Model: D266----4
    • 报价要求 报价要求
  • Price (exclude tax) 31,584,150 VND
    Price (include tax) 34,742,565 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267





High Voltage Output Accuracy: ±5% or ±50V below 1000 Volts
Operating Temperature: 0°C to 50°C (32°F to 120°F)
Power Supply: Rechargeable lithium ion battery, fully charged within 4 hours
Measured Current Flow Accuracy: ±5% of full scale   Output Current:0 - 100µA maximum
Typical Battery Life - Backlight Off (On)     DC5: 40 (20) hours     DC15: 20 (15) hours     DC30: 10 (8) hours
Instrument Case Dimensions: Waterproof, ABS case;     520 x 370 x 125mm (20.5 x 14.5 x 5”)
Weight: Base unit (including battery pack): 1.2kg (2.7lb)   Handle: 0.6kg (1.3lb)
Packing List: Elcometer 266 DC Holiday Detector, lithium battery, curly connection cable for high voltage handle, 10m signal return lead, Battery Charger with UK, EUR, US and AUS plugs, band brush, shoulder strap, tough plastic carry case and operating instructions

Details

Manual

Datasheet

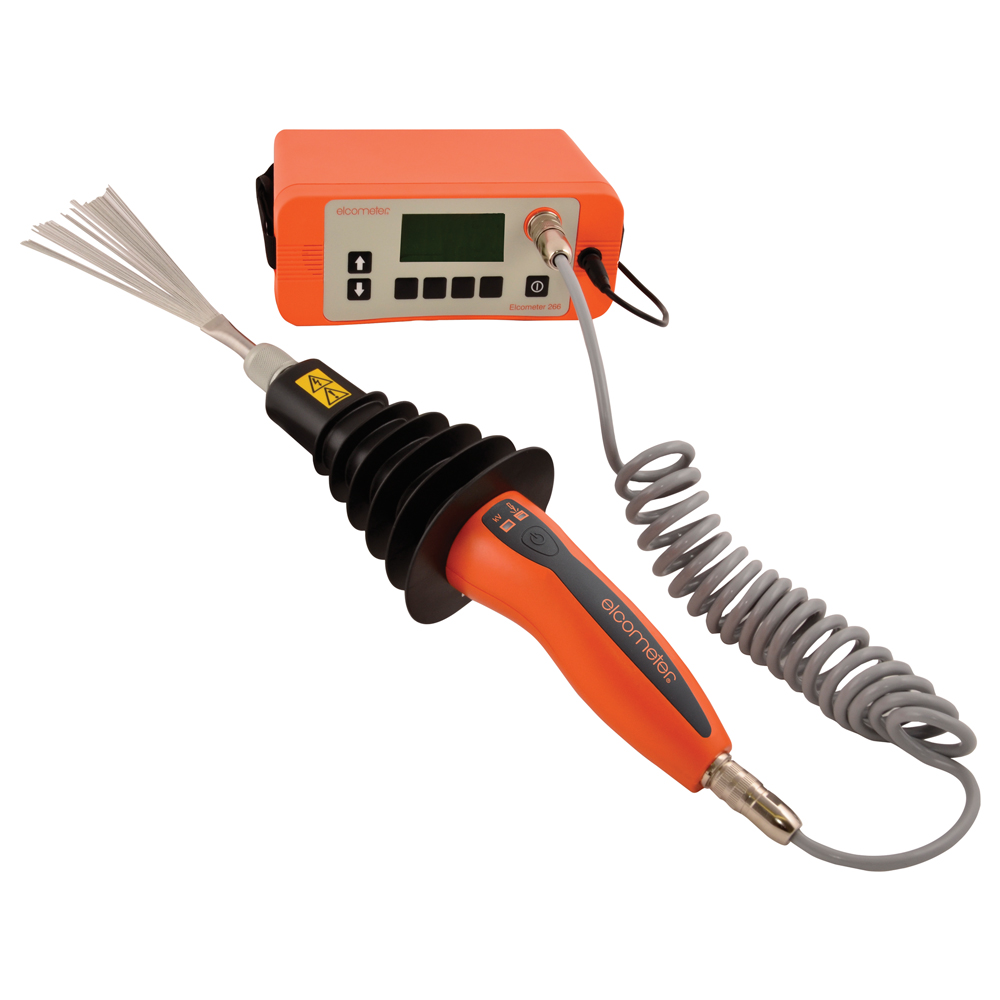

Elcometer 266 DC Holiday Detector

The Elcometer 266 revolutionises high voltage DC testing of coatings porosity detection making it safer, easier and more reliable than ever before.

The Elcometer 266 holiday detector can be used to test porosity on coatings up to 7 mm (275 mils) thick and is ideal for inspecting coatings on pipelines and other protective coatings.This holiday tester features a built-in voltage calculator which will determine and set the correct test voltage based upon the test standard and the thickness of coating being tested.



Elcometer 266 DC Holiday Detector

Technical Specification

Part Number

Description



Certificate

D266----4

Elcometer 266*



ο

High Voltage Output Accuracy

±5% or ±50V below 1000 Volts

Operating Temperature

0°C to 50°C (32°F to 120°F)

Power Supply

Rechargeable lithium ion battery, fully charged within 4 hours

Measured Current Flow Accuracy

±5% of full scale   Output Current:0 - 100µA maximum

Typical Battery Life - Backlight Off (On)

DC5: 40 (20) hours

DC15: 20 (15) hours

DC30: 10 (8) hours

Instrument Case Dimensions

Waterproof, ABS case;     520 x 370 x 125mm (20.5 x 14.5 x 5”)

Weight

Base unit (including battery pack): 1.2kg (2.7lb)   Handle: 0.6kg (1.3lb)

Packing List

Elcometer 266 DC Holiday Detector, lithium battery, curly connection cable for high voltage handle, 10m (32’) signal return lead, Battery Charger with UK, EUR, US and AUS plugs, band brush, shoulder strap, tough plastic carry case and operating instructions
