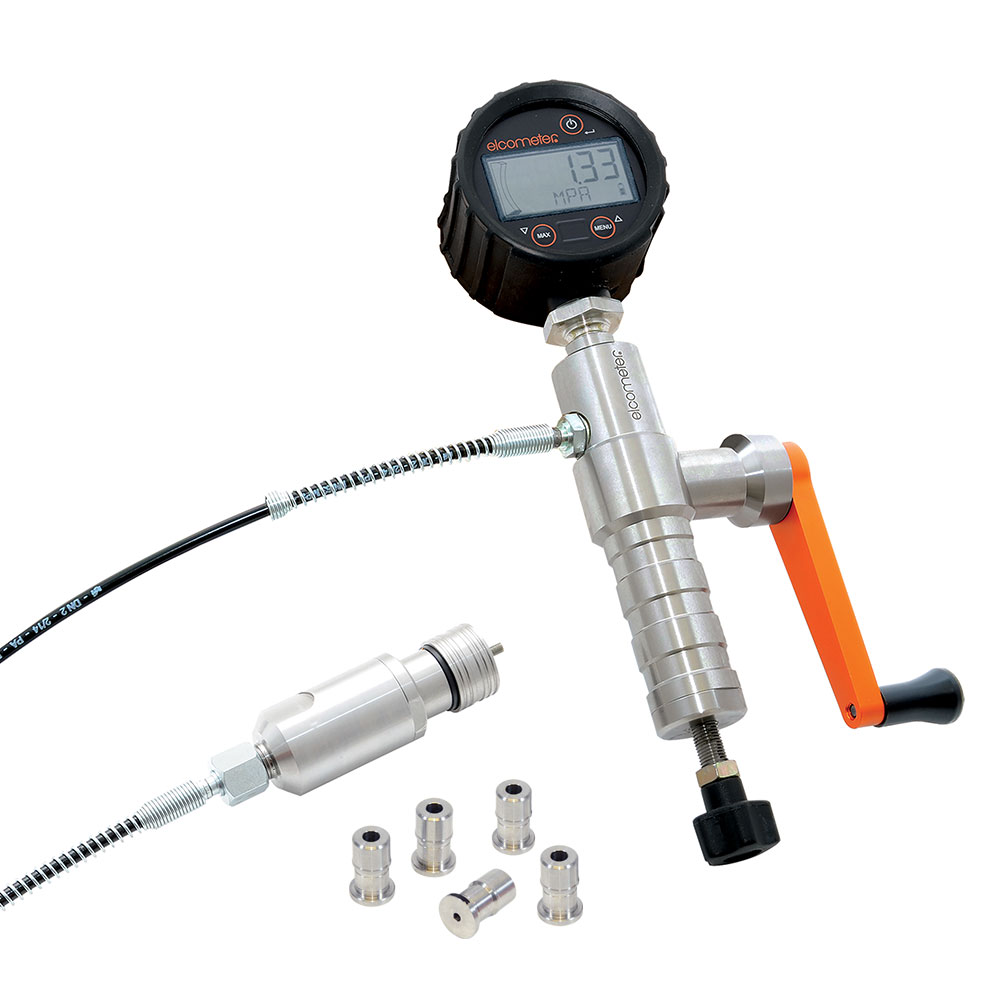

ELCOMETER 508 Digital Push Off Adhesion Tester (0 - 26MPa)

Dolly Size:

- Outside Diameter: 19.4mm (0.76")

- Inside Diameter: 3.7mm (0.15")

- Area: 284mm² (0.44sq.inch)

Scale Range: 0 - 26MPa (0 - 3800psi)

Operating Range: 2 - 25MPa (290 - 3630psi)

Scale Resolution: 0.01MPa (1psi)

Accuracy: ±1.5% of full scale

Power Supply: 2 x AA alkaline dry batteries (rechargeable batteries can be used)

Weight:

- Gauge: 1.7kg (3.7lb)

- Kit: 4.5kg (9.9lb)

Instrument Length: 290mm (11.5")

Coupling Height: 200mm (8")

Packing List:

- Elcometer 508

- Transit case, 5 flat dollies, 5 dolly plugs, Cyanoacrylate Adhesive,

dolly cleaning tool, 2 x LR6 (AA batteries), operating instructions and calibration

certificate
