Elcometer FD800DL+ 台面式探伤仪(0.01~30480mm,A / B扫描,Thrupaint,数据记录,RS232,宽带,窄带)

A-Scan display: + Rectified, - Rectified, Full Waveform (RF)
Flaw detection modes: TRIG, DAC, AWS, TCG, Zero Crossing, Flank, Peak
Measurement Mode: PE, PETP (Temp Compensation), EE (ThruPaint™), EEV, CT (Coating) & PECT
Measurement Rate (Thickness Mode)
+ Manual: 4 readings per second
+ Scan mode: 32 readings per second
+ Scan bar display: 6 readings per second
Measuring Range: PE: 0.63 - 30480mm, PETP: 0.63 - 30480mm, EE: 1.27 - 102mm, EEV: 1.27 - 25.4mm, CT: 0.01 - 2.54mm, PECT: 0.63 - 30480mm, PECT: 0.01 - 2.54mm
Measurement Accuracy2: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.01mm (0.001 inch)
Velocity Calibration Range: 256 - 16,000m/s (0.0100 - 0.6300in/ms)
Data logging:6Gb internal & up to 64Gb external SD slot
Frequency Bands: Broadband 1.8 - 19 MHz, Four narrow bands at 1, 2, 5, 10MHz
Battery Type: 6 x AA alkaline
Battery Life: 12 hours
Operating Temperature: -10 to 60ºC
Size (w x h x d): 216.0 x 165.0 x 70.0mm
Weight (including batteries): 2.04 kg
Transducer Connector Type: LEMO
RS232 Interface: Bi-directional
Packing List: Elcometer NDT FD800DL or FD800DL+ gauge, couplant, carry case, user manual, test certificate, 3 x AA batteries, ElcoMaster® software, transfer cable

Note: A transducer is not suppied with the Gauges, must be ordered separately

Detail

Manual

Datasheet

Datasheet Transducer

FD800 Bench Top Flaw Detectors

The bench-top FD800 flaw detector range combines state-of-the-art flaw detection with advanced material thickness capabilities.

Designed for use in the laboratory these gauges are the tool you need for all your flaw detecting needs.

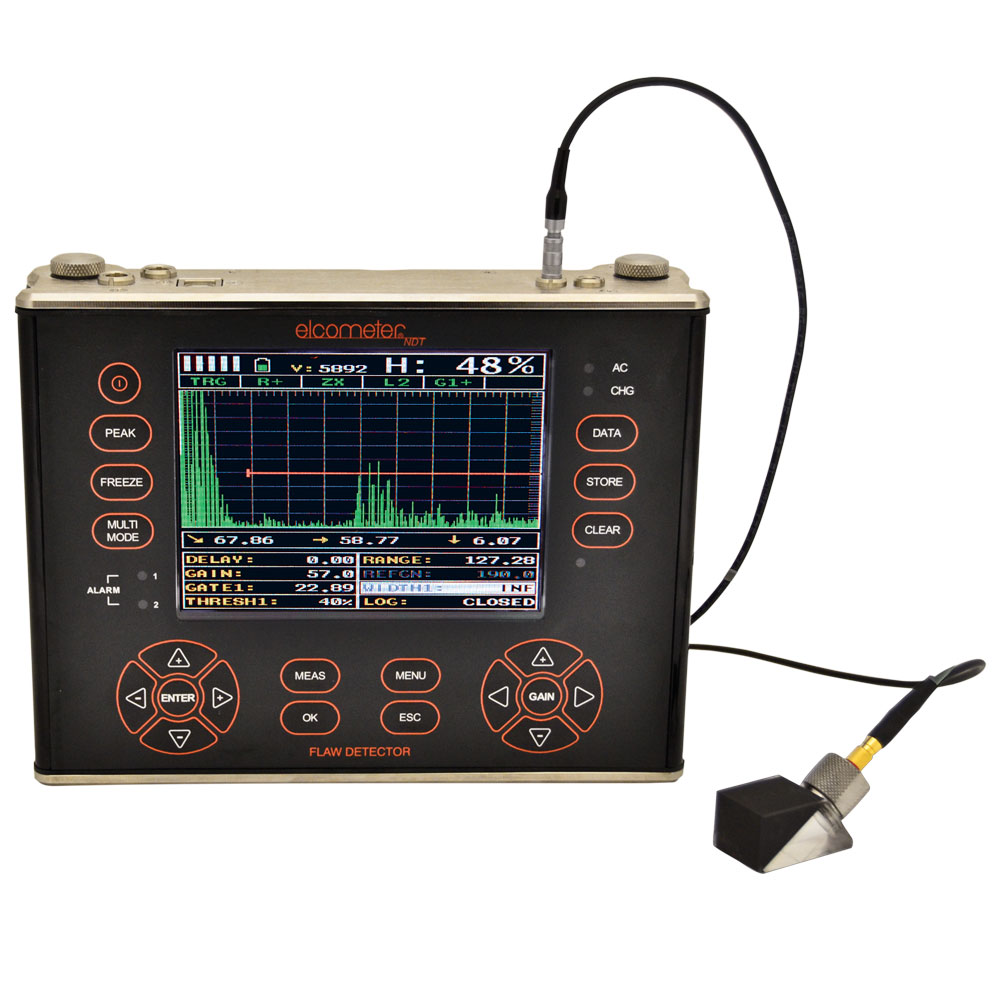

The Elcometer FD800 Bench Top Flaw Detector is available in two models: FD800DL and FD800DL+.

The time corrected gain (TCG) feature  automatically compensates for sound attenuation through a material, further increasing the performance of the gauge.

Within the grid batching of the FD800DL+ the user has the capability to enter OBSTRUCT on to the grid for easy identification of inaccessible locations to measure.

The FD800DL+ has a 6Gb internal memory and an external SD slot which allows up to 64Gb with full data logging via RS232 data output to ElcoMaster® data management software.



FD800 Flaw Detection

Features:

  • Blanview sunlight readable QVGA TFT colour display
  • Sizing Toolkits: DAC, AWS, TCG, DGS
  • Pulse Repetition Frequency: 8 to 333 Hz, adjustable
  • Screen Refresh Rate: 60Hz
  • Detection: Z-Cross, Flank & Peak
  • Automatic: probe zero, probe recognition, and temperature compensation
  • Measurement: Variety of modes to address a number of applications
  • Large data storage: 6Gb internal & up to 64Gb external SD slot
  • Multiple formats: Alpha numeric grid and sequential with auto identifier
  • Up to 12 hours of battery life
  • Download to ElcoMaster® data management software





Pulsed Echo (P-E) Measurement Mode Echo Echo (E-E) Measurement Mode Pulsed Echo Temp Comp (PETP) Measurement Mode Pulsed Echo Coating Thickness (PECT) Measurement Mode Echo Echo Verify (EEV) Measurement Mode Coating Thickness (CT) Measurement Mode Automatic Gain Control (ACG) B-Scan A-Scan

 Distance Amplitude Correction (DAC) American Weld Standard (AWS) AVG/DGS Time Corrected Gain (TCG)





FD800 Bench Top Flaw Detectors

Technical Specification

<td style="border:solid windowtext 1.0pt;mso-border-alt:solid windowtext .5pt;

Model & Part Number

FD800DL & FD800DL+

Material thickness digits display

B-Scan cross sectional display

B-Scan with digits display

Scan bar display

Coating thickness display

A-Scan display

+ Rectified, - Rectified, Full Waveform (RF)

Flaw detection modes

TRIG, DAC, AWS, TCG, Zero Crossing, Flank, Peak

Measurement Mode1

PE, PETP (Temp Compensation),
EE (ThruPaint™), EEV, CT (Coating) & PECT

Measurement Rate (Thickness Mode)
Manual:
Scan mode
Scan bar display


4 readings per second
32 readings per second
6 readings per second

Measuring Range2

PE: 0.63 - 30480mm (0.025 - 1,200 inches)
PETP: 0.63 - 30480mm (0.025 - 1,200 inches)
EE: 1.27 - 102mm (0.050 - 4.000 inches)
EEV: 1.27 - 25.4mm (0.050 - 1.000 inch)
CT: 0.01 - 2.54mm (0.0005 - 0.100 inch)
PECT: 0.63 - 30480mm (0.025 - 1,200 inches)
PECT: 0.01 - 2.54mm (0.0005 - 0.100 inch)

Measurement Accuracy2

± 1% or ±0.1mm whichever is the greater

Measurement Resolution

0.01mm (0.001 inch)

Velocity Calibration Range

256 - 16,000m/s (0.0100 - 0.6300in/ms)

Additional Features:



High speed scan mode

Differential mode

Limit alarm mode

B-Scan display speed

adjustable display speed

Calibration setups

6 factory & 64 user-definable setups
transferrable to and from a PC archive

Gates

3 fully adjustable gates:
start, stop, width & threshold

Damping

adjustable; impedance matching for
optimising transducer performance

Pulser type

FD800DL: two adjustable square wave pulsers.
FD800DL+: two tone burst pulsers

Gain

manual, automatic gain control (AGC)
with 110dB range with 0.2dB resolution

Timing

precision TCXO timing with single shot
100MHz 8bit ultra low power digitizer

Data logging

• 6Gb internal & up to 64Gb external SD slot
• Bitmap graphic capture
• sequential and grid logging
• Alpha numeric batch identification
• OBSTRUCT indicates inaccessible locations

Calibration Options

single, two point, velocity & material type

Transducer recognition

automatic

V-path / dual path error correction

automatic

Probe zero

automatic

Flaw Detection Mode Features

Automatic
Calibration:

Longitudinal (straight),
or Shear (angle)

Probe Types:

Single Contact, Dual, Delay & Angle

Material Velocity Table:

Contains longitudinal and shear
velocities for a variety of material types

TRIG

Trigonometric display of beam path,
depth, surface distance, and curved surface correction.
Used with angle beam transducers

DAC

Up to 8 points may be entered and used to digitally
draw a DAC curve. Reference -2, -6, -10, (-6/-12),
(-6/-14), (-2/-6/-10) dB. Amplitude displayed in
%DAC, dB, or %FSH

AWS

Automatic defect sizing in accordance with AWS
D1.1 structural welding code.

AVG/DGS

Automatic defect sizing using probe
data. Stores up to 64 custom setups

TCG

Time corrected gain. 50 dB dynamic range, 20 dB
per microsecond, up to 8 points for curve definition

Detection Modes

Zero Crossing, Flank and Peak

Display Freeze

Hold current waveform on screen

Peak Memory

Captures peak signal amplitude.

PRF

8 to 2000Hz in selectable steps (8, 16, 32, 66, 125, 250, 333, 1000, 2000Hz)

Pulse Width

40 to 400 ns. Selectable step
options 40, 80 & 400 ns (labeled spike, thin &
wide)

Frequency Bands

FD800DL & FD800DL+: Broadband 1.8 - 19 MHz (-3dB). Four narrow bands at 1, 2, 5, 10MHz
FD800DL: Additional narrow bands at 5MHz, 15MHz

Horizontal Linearity

+/- 0.4% FSW

Vertical Linearity

+/- 1% FSH

Amplifier Linearity

+/- 1 dB

Amplitude Measurement

0 to 100% FSH, with 1% resolution

Delay

0 - 999in (25,375mm) at steel velocity

Display

Blanview sunlight readable QVGA TFT colour display.

115.2 x 86.4mm (4.54 x 3.40 inches) viewable screen

Display Refresh Rate

60Hz

Units (selectable)

mm or inches

Backlight

adjustable brightness

Repeatability / Stability Indicator

Battery Type

6 x AA alkaline

Battery Life
(approximate)

12 hours

Low Battery Indicator

Battery Save Mode

auto

Operating Temperature

-10 to 60ºC (14 to 140ºF)
