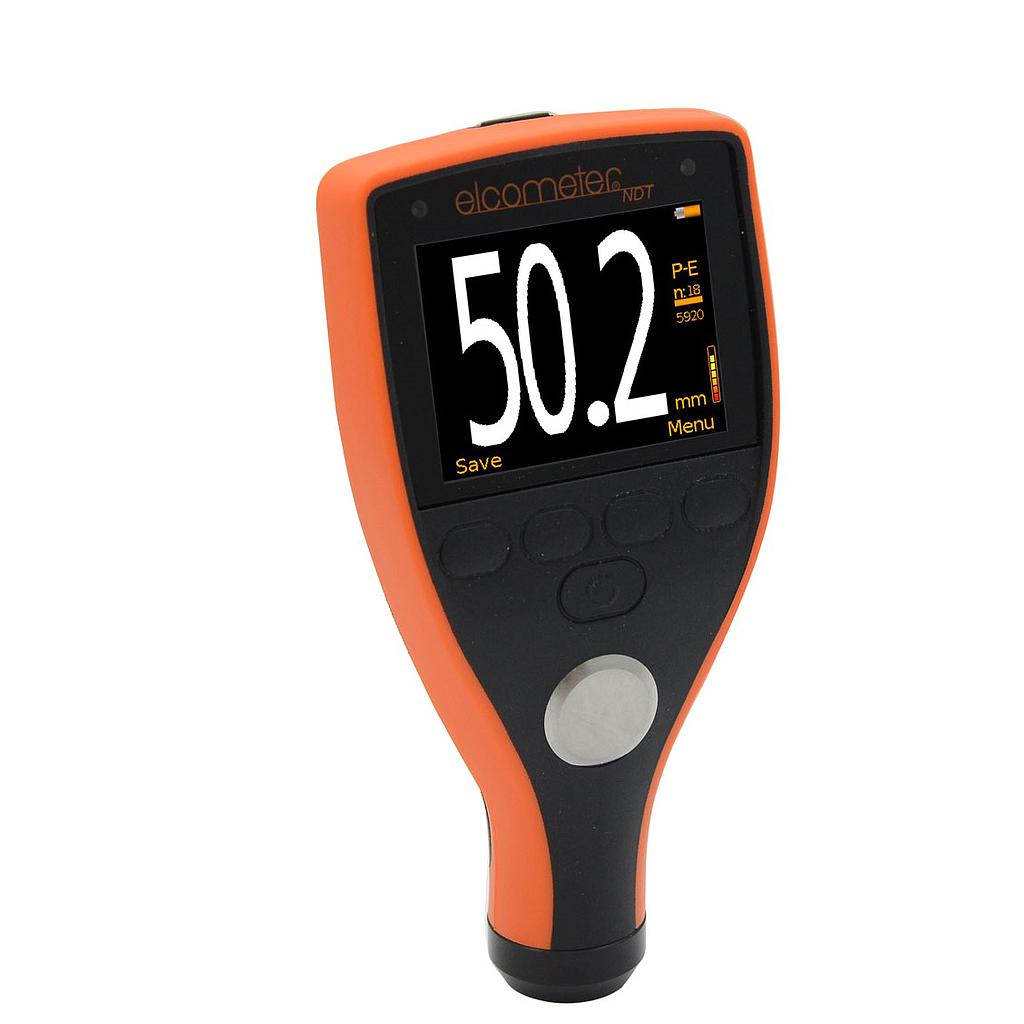

ELCOMETER MTG4 超声波材料厚度计 (0.63-500mm)

Material  measuring: Aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.

Tough, impact, waterproof and dust resistant equivalent to IP54

Measurement Mode: Pulsed-Echo (P-E),  Echo-Echo ThruPaint™ (E-E) measurement Mode

Measurement Rate: 4Hz

Range:

Pulsed-Echo P-E: 0.63-500mm (0.025-20")

Echo-Echo ThruPaint™ E-E: 2.54 - 25.40mm (0.100-0.787")

Accuracy:

Pulsed-Echo P-E: ±0.1mm (0.63-19.99mm); ±0.5% (20.00-500.00mm); ±0.004" (0.025-0.787"); ±0.5% (0.788-20.00");

Echo-Echo ThruPaint™ E-E: ±0.1mm (2.54-20.00mm): ±0.004" (0.100-0.787")

Measurement Units: mm or inch

Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs

Data Output: USB; to PC

Transducer Probe Type: Dual element

Battery Type: 2xAA

Battery Life: Alkaline: 15 hour, Lithium: 28 hour

Operating Temperature: -10 to 50°C

Size (w x h x d): 145x73x37mm

Weight (including batteries): 210

Packing List: Elcometer MTG4, 5MHz 1/4 right angle transducer, couplant, wrist harness, screen protector, protective case, 2 x AA batteries, calibration certificate, operating instructions

Transducer not included

Detail

Datasheet


Manual
