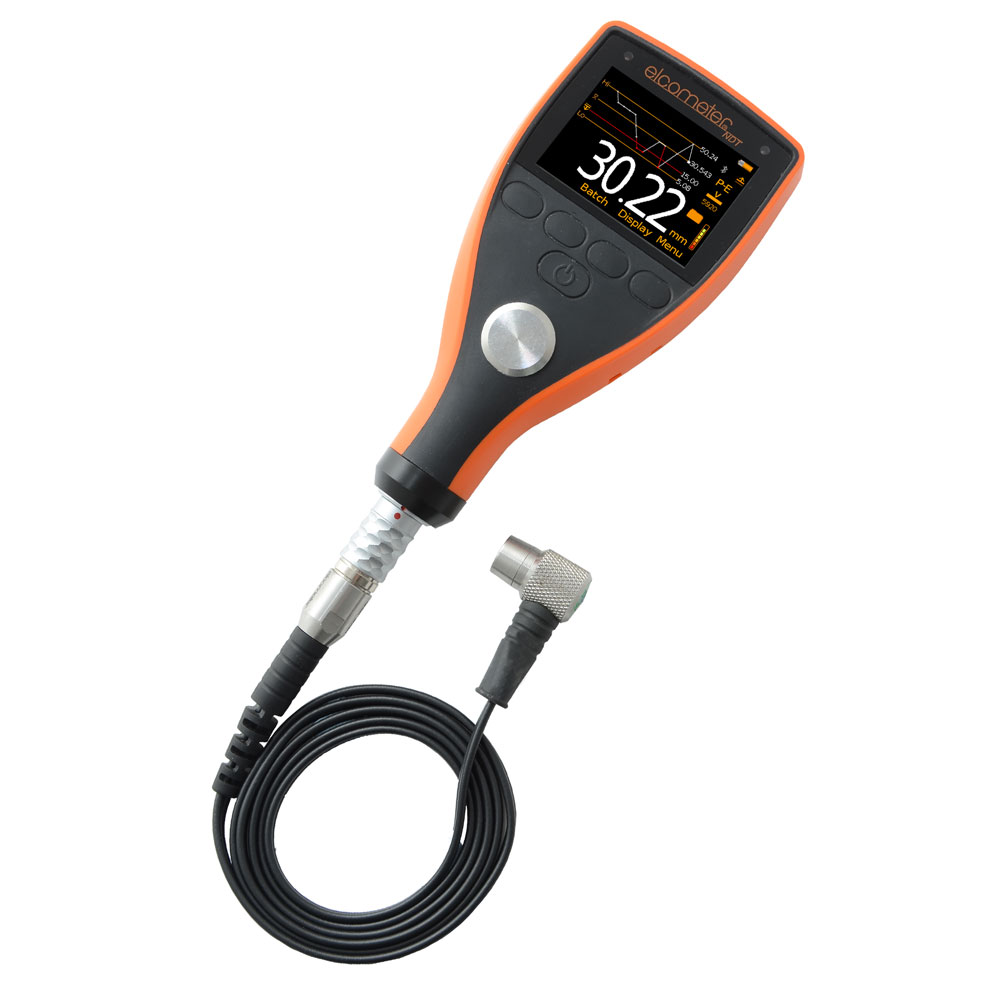

Elcometer MTG6DL-TXC 超声波材料厚度计(500mm,数据记录,扫描,蓝牙,IP54)

  • 制造商: ELCOMETER
    Model: MTG6DL-TXC
    • 报价要求 报价要求
  • Price (exclude tax) 42,247,000 VND
    Price (include tax) 46,471,700 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Pulsed-Echo (P-E) measurement Mode
Pre-calibrated for measuring on steel only
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Pulsed Echo (P-E)
Measurement Rate: 4, 8, 16Hz
Thickness Range: P-E: 0.63-500mm, E-E: 2.54 - 25.40mm
Measurement Accuracy: ±1% or ±0.05mm
Measurement Units: mm or inch, m/s, in/µs
Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs; Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Data Output: USB, bluetooth to PC
Data logging: yes
Transducer Probe Type: Dual element
Battery Type: 2xAA
Battery Life: Alkaline: 15 hours; Lithium: 28 hours
Operating Temperature: -10 to 50°C
Size (w x h x d): 145x73x37mm
Weight (including batteries): 210 g
Packing List: Elcometer MTG6DL, 5MHz 1/4 right angle transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, USB cable, ElcoMaster® Software, operating instructions

Details

Manual

Datasheet

Datasheet Transducer

MTG6 Material Thickness Gauge

With a choice of calibration options, measurement modes – including high speed scan mode, display options and data-logging, the MTG6 is ideal for taking readings on a wide range of coated and uncoated materials and downloading data for further analysis and reporting.

As well as all the features of the MTG2 & MTG4, the MTG6 has additional calibration options; 2-Point, Velocity and known Thickness Value.

Measurement Mode

The MTG6 offers Velocity Mode (VM) which is ideal for determining the homogeneity of a material/alloy and the correct velocity of a material for calibration.

Using Scan Mode, readings can be taken at a rate of 16Hz (16 readings per second) over a large surface area.  When the transducer is lifted off the surface, the average, lowest and highest thickness value is displayed making scan mode ideal for checking a sample overall uniformity.

Display Mode

With a user definable display, users can choose to view readings, statistical information, bar graph - an analogue representation of the current reading together with the highest (Hi) , lowest (Lo); and average (x), reading or a run chart; a trend graph of the last 20 readings.

Data Logging & Data Output

The MTG6 has a single batch gauge memory and can store up to 1,500 readings. Compatible with both ElcoMaster® and ElcoMaster® Mobile Apps, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.



MTG6 Material Thickness Gauge

Features:

  • Pulsed-Echo (P-E), Echo-Echo ThruPaint™ & Velocity (VM) measurement modes
  • 2-Point, 1-Point, Material, Velocity, Thickness Set and Factory calibration options
  • User selectable measurement rate; 4, 8, 16 readings per second
  • User selectable reading resolution; 0.1mm (0.01”) or 0.01mm (0.001”)
  • Scan Mode
  • Readings, Selected Statistics, Bar Graph & Run Chart
  • Gauge memory; single sequential batch of up to 1,500 readings
  • USB and Bluetooth® data output to ElcoMaster® and ElcoMaster® Mobile Apps

Select a transducer



Pulsed Echo (P-E) Measurement Mode Echo Echo (E-E) Measurement Mode Velocity Mode (VM) Measurement Mode Measurement Rate of 4Hz Measurement Rate of 8Hz Measurement Rate of 16Hz





MTG6 Material Thickness Gauge

Technical Specification

<td style="border:solid windowtext 1.0pt;mso-borde

Part Number (with Transducer)1

MTG6DL-TXC

Part Number (gauge only)

MTG6DL

Easy to use menu structure in multiple languages

Tough, impact, waterproof and dust resistant equivalent to IP54

Bright colour screen with permanent backlight

Ambient light sensor, with adjustable brightness

Scratch and solvent resistant display; 2.4" (6cm) TFT

Large positive feedback buttons

USB power supply via PC

Gauge software updates2 via ElcoMaster® Software

2 year gauge warranty3

Measurement Mode



Pulsed Echo (P-E)

Echo-Echo ThruPaint™ (E-E)

Velocity Mode (VM)

Measurement Rate

4, 8, 16Hz4

Thickness Range5



P-E: 0.63-500mm (0.025-20")

E-E: 2.54 - 25.40mm (0.100-1.00")

Measurement Accuracy6

±1% or ±0.05mm (0.002")

Measurement Units



mm or inches

m/s, in/µs

Repeatability / Stability Indicator

Display Mode:



Reading

Selected statistics

Scan thickness bar graph

Run Chart

Selectable Reading Resolution



Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs

Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs

Statistics



Number of readings, n, mean average, ẋ, standard deviationσ

Lowest reading, Lo; Highest reading, Hi

Calibration Options



Zero (using the integral zero disc)

1 - point

2 - point

Material selection; 39 preset materials

Factory; resets to the factory calibration

Velocity (speed of sound)

Known thickness value

Calibration Features



Calibration lock: with optional PIN Lock

Test calibration feature

Data Logging



Number of readings

1,500

Number of batches

1

Sequential batching

Delete last reading

Date & time stamp

Review, clear & delete batches

Data Output



USB; to PC

Bluetooth® to computer, Android™ & iOS devices

ElcoMaster® software

Transducer Probe Type

Dual element

Auto transducer recognition
