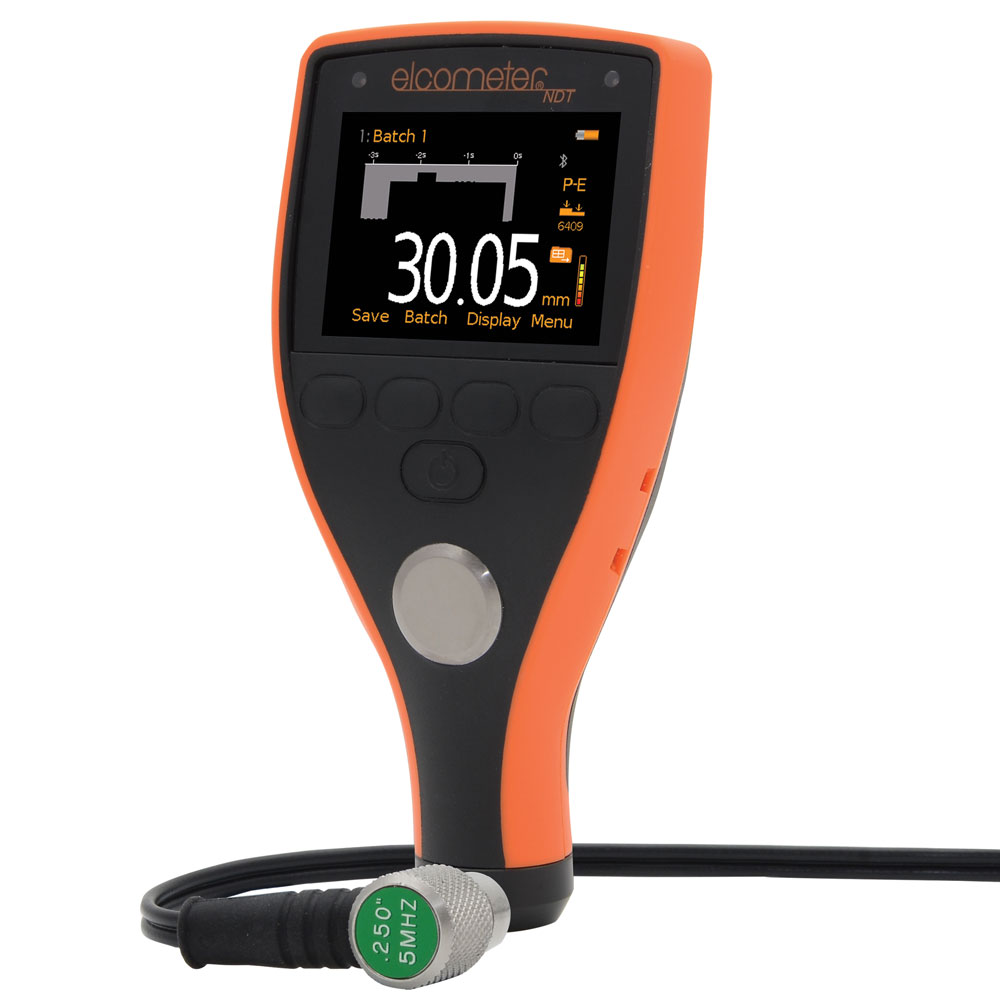

Elcometer MTG8BDL-TXC 材料厚度计(500mm,25.40mm,数据记录,IP54)

  • 制造商: ELCOMETER
    Model: MTG8BDL-TXC
    • 报价要求 报价要求
  • Price (exclude tax) 54,609,750 VND
    Price (include tax) 60,070,725 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Pulsed-Echo (P-E) measurement Mode
Pre-calibrated for measuring on steel only
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Pulsed Echo (P-E)
Measurement Rate: 4, 8, 16Hz
Thickness Range: P-E: 0.63-500mm, E-E: 2.54 - 25.40mm
Measurement Accuracy: ±1% or ±0.05mm
Measurement Units: mm or inch, m/s, in/µs
Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs; Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Data Output: USB, bluetooth to PC
Data logging: yes
Transducer Probe Type: Dual element
Battery Type: 2xAA
Battery Life: Alkaline: 15 hours; Lithium: 28 hours
Operating Temperature: -10 to 50°C
Size (w x h x d): 145x73x37mm
Weight (including batteries): 210 g
Packing List: Elcometer MTG8BDL , 5MHz 1/4, 5MHz 1/4 right angle transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, USB cable, ElcoMaster® Software, operating instructions

Details

Manual

Datasheet

Datasheet Transducer

MTG8 Material Thickness Gauge

The MTG8 is the top of the range gauge with all the features and functionality necessary for measuring material thickness and velocity on virtually any material and for a wide range of applications.

As well as all the features of the MTG2, MTG4 and MTG6, the MTG8 allows users to store into memory up to three calibrations. Once saved the user can select a calibration memory without the need to re-calibrate the gauge, ideal for users who are measuring a variety of materials or thicknesses.  Using the gauge alpha-numeric function, calibration memories can be re-named to suit the calibration setting.

Statistics

The MTG8 has user definable upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch.  If a measurement is taken which falls outside set limits, the reading value and the limit icon turn red, the red LED flashes and the alarm beeps providing immediate indication of problem areas.

Display Mode

The MTG8 has Differential Mode; once a user defined nominal thickness value is set, the gauge displays the measured thickness together with the variation from the set nominal value thus indicating areas of the material which are thinner or thicker than expected.

The MTG8 offers B-Scan, a time based, cross sectional 2 dimensional graphical view of the material under test, ideal for relative depth analysis. The zoom of the B-Scan reading can either be set to automatic or can be defined by the user to focus on areas of interest.

Data Logging

The MTG8 can store 100,000 readings in up to 1,000 sequential or grid type batches. Using grid batching, readings are stored in a spreadsheet type format. The Obst feature, allows the user to record an obstruction within the grid.

Data Output

Compatible with ElcoMaster®, PC & Mobile App, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.



MTG8 Material Thickness Gauge

mfi logo

Features:

  • Pulsed-Echo (P-E), Echo-Echo ThruPaint™ & Velocity (VM) measurement modes
  • 2-Point, 1-Point, Material, Velocity, Thickness Set and Factory calibration options
  • Three user programmable calibration memories
  • User selectable measurement rate; 4, 8, 16 readings per second
  • User selectable reading resolution; 0.1mm (0.01”) or 0.01mm (0.001”)
  • Scan Mode
  • Readings, Selected Statistics, Bar Graph, Run Chart, B-Scan & Differential Mode
  • Gauge memory; stores 100,000 readings in up to 1,000 sequential or grid batches
  • User definable upper and lower limits with audible & visual pass/fail warnings
  • USB and Bluetooth® data output to ElcoMaster® and ElcoMaster® Mobile App




Pulsed Echo (P-E) Measurement Mode Echo Echo (E-E) Measurement Mode Velocity Mode (VM) Measurement Mode Measurement Rate of 4Hz Measurement Rate of 8Hz Measurement Rate of 16Hz B-Scan Display Mode



Manual

Datasheet

Datasheet Transducer

MTG8 Material Thickness Gauge

The MTG8 is the top of the range gauge with all the features and functionality necessary for measuring material thickness and velocity on virtually any material and for a wide range of applications.

As well as all the features of the MTG2, MTG4 and MTG6, the MTG8 allows users to store into memory up to three calibrations. Once saved the user can select a calibration memory without the need to re-calibrate the gauge, ideal for users who are measuring a variety of materials or thicknesses.  Using the gauge alpha-numeric function, calibration memories can be re-named to suit the calibration setting.

Statistics

The MTG8 has user definable upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch.  If a measurement is taken which falls outside set limits, the reading value and the limit icon turn red, the red LED flashes and the alarm beeps providing immediate indication of problem areas.

Display Mode

The MTG8 has Differential Mode; once a user defined nominal thickness value is set, the gauge displays the measured thickness together with the variation from the set nominal value thus indicating areas of the material which are thinner or thicker than expected.

The MTG8 offers B-Scan, a time based, cross sectional 2 dimensional graphical view of the material under test, ideal for relative depth analysis. The zoom of the B-Scan reading can either be set to automatic or can be defined by the user to focus on areas of interest.

Data Logging

The MTG8 can store 100,000 readings in up to 1,000 sequential or grid type batches. Using grid batching, readings are stored in a spreadsheet type format. The Obst feature, allows the user to record an obstruction within the grid.

Data Output

Compatible with ElcoMaster®, PC & Mobile App, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.



MTG8 Material Thickness Gauge

mfi logo

Features:

  • Pulsed-Echo (P-E), Echo-Echo ThruPaint™ & Velocity (VM) measurement modes
  • 2-Point, 1-Point, Material, Velocity, Thickness Set and Factory calibration options
  • Three user programmable calibration memories
  • User selectable measurement rate; 4, 8, 16 readings per second
  • User selectable reading resolution; 0.1mm (0.01”) or 0.01mm (0.001”)
  • Scan Mode
  • Readings, Selected Statistics, Bar Graph, Run Chart, B-Scan & Differential Mode
  • Gauge memory; stores 100,000 readings in up to 1,000 sequential or grid batches
  • User definable upper and lower limits with audible & visual pass/fail warnings
  • USB and Bluetooth® data output to ElcoMaster® and ElcoMaster® Mobile App




Pulsed Echo (P-E) Measurement Mode Echo Echo (E-E) Measurement Mode Velocity Mode (VM) Measurement Mode Measurement Rate of 4Hz Measurement Rate of 8Hz Measurement Rate of 16Hz B-Scan Display Mode





MTG8 Material Thickness Gauge

Technical Specification

Part Number (with Transducer)1

MTG8BDL-TXC

Part Number (gauge only)

MTG8BDL

Easy to use menu structure in multiple languages

Tough, impact, waterproof and dust resistant equivalent to IP54

Bright colour screen with permanent backlight

Ambient light sensor, with adjustable brightness

Scratch and solvent resistant display; 2.4" (6cm) TFT

Large positive feedback buttons

USB power supply via PC

Gauge software updates2 via ElcoMaster® Software

2 year gauge warranty3

Limits: 40 definable audible & visual pass/fail warnings

Measurement Mode



Pulsed Echo (P-E)

Echo-Echo ThruPaint™ (E-E)

Velocity Mode (VM)

Measurement Rate

4, 8, 16Hz4

Thickness Range5



P-E: 0.63-500mm (0.025-20")

E-E: 2.54 - 25.40mm (0.100-1.00")

Measurement Accuracy6

±1% or ±0.05mm (0.002")

Measurement Units



mm or inches

m/s, in/µs

Repeatability / Stability Indicator

Display Mode:



Reading

Selected statistics

Scan thickness bar graph

Run Chart

Readings and Differential

B-Scan cross sectional display

Selectable Reading Resolution



Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs

Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs

Statistics



Number of readings, n, mean average, ẋ, standard deviationσ

Lowest reading, Lo; Highest reading, Hi

Low high limit value

Reading Range Value

Nominal Value

Number of readings below low limit

Number of readings above high limit

Calibration Options



Zero (using the integral zero disc)

1 - point

2 - point

Material selection; 39 preset materials

Factory; resets to the factory calibration

Velocity (speed of sound)

Known thickness value

Calibration Features



Calibration lock: with optional PIN Lock

Test calibration feature
