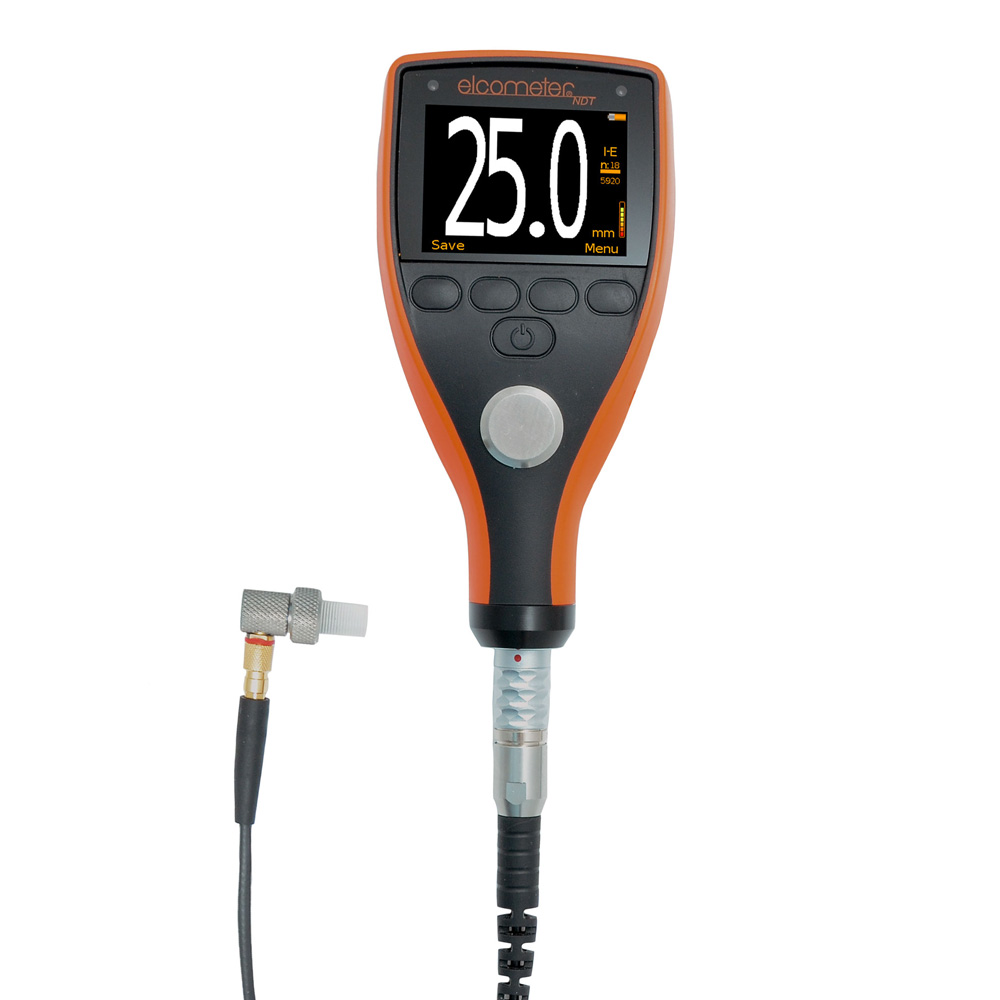

Elcometer PTG6-TXC 精密测厚仪(0.15mm~25.40mm,IP54,Plas)

  • 制造商: ELCOMETER
    Model: PTG6-TXC
    • 报价要求 报价要求
  • Price (exclude tax) 54,402,660 VND
    Price (include tax) 59,842,926 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Echo-Echo (E-E), Interface Echo (I-E), Plastic Mode (PLAS)
Measurement Rate: 4, 8, 16Hz
Thickness Range:  E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm
Measurement Accuracy: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm
Measurement Units: mm or inches
Selectable Reading Resolution
+ Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
+ Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Calibration Options: 1 - point, 2 - point, Material selection; 39 preset materials, Factory; resets to the factory calibration, Velocity (speed of sound)
Data Output: USB; to PC, ElcoMaster® software
Battery Type: 2 x AA
Battery Life: Alkaline: 15 hours
Lithium: 28 hours
Operating Temperature: -10 to 50°C (14 to 122°F)
Size (w x h x d): 145x73x37mm (5.7x2.84x1.46")
Weight (including batteries): 210g (7.4oz)
Packing List: Elcometer PTG6, 15MHz 1/4 inch Microdot right angle single element transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, two year warranty extension card, operating instructions

Note: A transducer is not suppied with the Gauges, must be ordered separately

Details

Manual

Datasheet

Datasheet Transducer

PTG6 Precision Thickness Gauge

When precision is key, the PTG6 has a measurement range of 0.15mm  to 25.40mm with ±1% accuracy, across three measurement modes, Interface Echo (I-E), Echo-Echo (E-E), and Plastic Mode (PLAS). This gauge allows users to take measurements with pinpoint accuracy.

Calibration Options

The PTG6 has a number of calibration options. Using an uncoated sample of test material of a known thickness, the gauge can be calibrated using 1-Point calibration. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.

The PTG6 also offers the additional calibration options of 2-Point & Velocity.

Data Output

Compatible with ElcoMaster® software, individual readings can be downloaded via USB to PC or similar device for further analysis.



PTG6 Precision Thickness Gauge

Features:

  • Interface Echo (I-E) Echo-Echo (E-E) ) & Plastic Mode (PLAS) measurement modes
  • Measurement range from 0.15mm  to 25.40mm
  • 2-Point, 1-Point, Material, Thickness Set and Factory Calibration options
  • User selectable measurement rate; 4,8,16 readings per second
  • User selectable reading resolution; 0.1mm  or 0.01mm
  • USB output to ElcoMaster®





Interface Echo (I-E) Measurement Mode Echo Echo (E-E) Measurement Mode Plastic Mode (PLAS) Measurement Mode Measurement Rate of 4Hz Measurement Rate of 8Hz Measurement Rate of 16Hz



Technical Specification

Part Number (with Transducer)1

PTG6-TXC

Part Number (gauge only)

PTG6

Easy to use menu structure in multiple languages

Tough, impact, waterproof and dust resistant equivalent to IP54

Bright colour screen with permanent backlight

Ambient light sensor, with adjustable brightness

Scratch and solvent resistant display; 2.4" (6cm) TFT

Large positive feedback buttons

USB power supply via PC

Gauge software updates2 via ElcoMaster® Software

2 year gauge warranty3

Measurement Mode



Echo-Echo (E-E)

Interface Echo (I-E)

Plastic Mode (PLAS)

Measurement Rate

4, 8, 16Hz4

Thickness Range5



E-E 0.15 - 10.15mm (0.006-0.400")

I-E 1.65 - 25.40mm (0.065-1.000")

PLAS 0.15 - 5.00mm (0.006-0.197")

Measurement Accuracy6

±1% or ±0.015mm (0.0006")

Measurement Units

mm or inches

Repeatability / Stability Indicator

Display Mode: Reading

Selectable Reading Resolution



Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs

Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs

Calibration Options



1 - point

2 - point

Material selection; 39 preset materials

Factory; resets to the factory calibration

Velocity (speed of sound)

Calibration Features



Calibration lock: with optional PIN Lock

Test calibration feature

Data Output



USB; to PC

ElcoMaster® software

Transducer Probe Type

Single element

Auto transducer recognition

Battery Type7

2 x AA

Battery Life7

Alkaline: 15 hours
Lithium: 28 hours

Operating Temperature

-10 to 50°C (14 to 122°F)

Size (w x h x d)

145x73x37mm (5.7x2.84x1.46")

Weight (including batteries)

210g (7.4oz)

Packing List

Elcometer PTG6, 15MHz 1/4" Microdot right angle single element transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, two year warranty extension card, operating instructions





STANDARDS:

EN14127, EN15317



1 Supplied with 15MHz 1/4"Microdot right angle single element transducer

2 Internet connection required

3 The Elcometer MTG range is extendable within 60 days from date of purchase, free of charge to two years

4 User selectable default setting in scan mode is 16 Hz

5 Dependent on the material being measured and the transducer being used

6 Whichever is the greater

7 Supplied with Alkaline, Lithium and rechargable can be used with the gauges, continuous use at 1 reading per second
