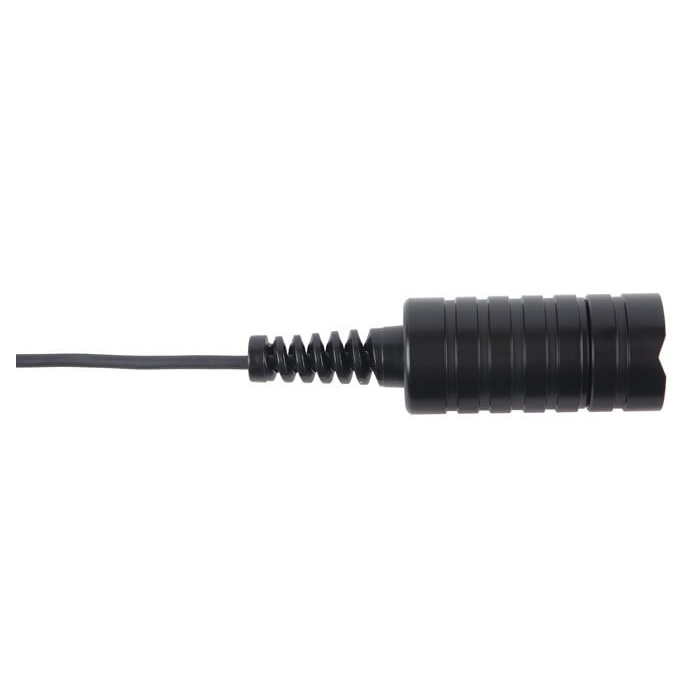

ELCOMETER 456 Coating Thickness Gauge Ferrous Probe (0-5mm)

Accuracy: ±1-3% or ±20μm (±1-3% or ±1.0mil)

Range: 0-5mm / 0-200mils

Resolution: 1μm: 0-1mm (0.1mil: 0-50mils); 10μm: 1-5mm (1.0mil: 50-200mils)

Waterproof Probe, 1m (3’) cable

Minimum Headroom: 138mm (5.43")

Minimum Sample Diameter: 8mm (0.32")

Minimum Convex Surface Diameter: 4mm (0.16")

Minimum Concave Surface Radius: 40mm (1.98")
