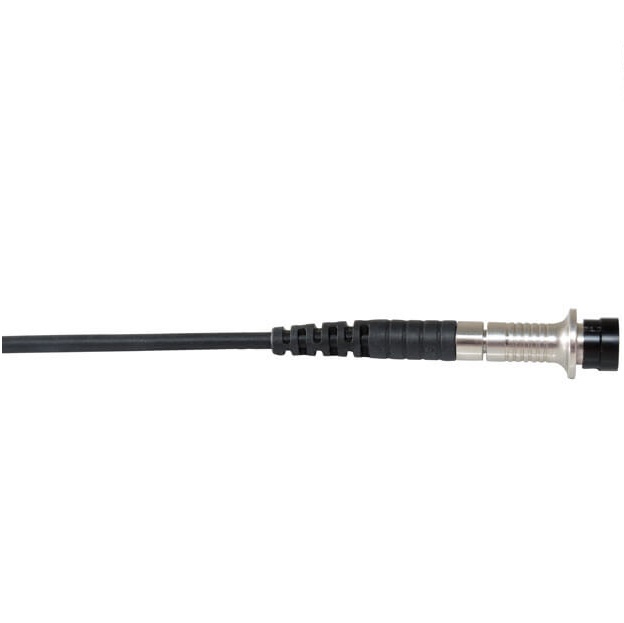

ELCOMETER 456 Coating Thickness Gauge Ferrous Probe (0-5mm)

Accuracy: ±1-3% or ±20μm (±1-3% or ±1.0mil)

Range: 0-5mm / 0-200mils

Resolution: 1μm: 0-1mm (0.1mil: 0-50mils); 10μm: 1-5mm (1.0mil: 50-200mils)

Scan Probe

Minimum Headroom: 90mm (3.54")

Minimum Sample Diameter: 15mm (0.59")

Minimum Convex Surface Diameter: Flat Surface

Minimum Concave Surface Radius: Flat Surface
