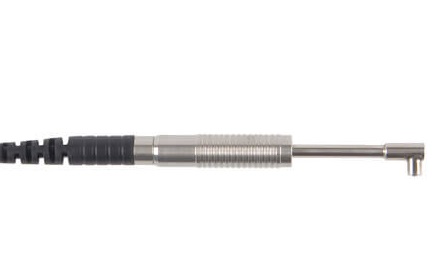

ELCOMETER 456 Coating Thickness Gauge Ferrous Probe (0~1.500μm; Mini 90°; 45mm)

Range: 0-1.500μm (0-60mils)

Accuracy: ±1-3% or ±2.5μm (±1-3% or ±0.1mil)

Resolution:

- 0.1μm: 0-100μm (0.01mil: 0-5mils)

- 1μm: 100-1.500μm (0.1mil: 5-60mils)

Cable: 2m (6.5")

Probe Length: 45mm (1.77”)- armoured

Minimum Sample Diameter: 4mm (0.16”)

 Datasheet
