Elcometer UG20DL 水下测厚仪(300米,数据记录,RS232,A扫描,Thrupaint)

  • 制造商: ELCOMETER
    Model: UG20DL
    • 报价要求 报价要求
  • Price (exclude tax) 65,878,000 VND
    Price (include tax) 72,465,800 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Measurement Mode: PE, EE,  PECT, EEV
Measurement Rate Manual: 4 readings per second
Measurement Range
+ PE: 0.63 - 500mm (0.025 - 19.999 inches)
+ EE: 2.54 - 102mm (0.100 - 4.000 inches)
+ PECT: 0.63 - 500mm (0.025 - 19.999 inches)
+ PECT: 10.0 - 254mm (0.001 - 0.100 inches)
+ EEV: 1.00 - 150mm (0.040 - 6.000 inches)
Measurement Accuracy: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.01mm (0.001 inch)
Velocity Calibration Range: 1250 - 13,995m/s
A-Scan: Stored in memory with each reading for review on PC
Waterproof - depth ratings: Maximum depth 300 metres (1,000 feet) - equivalent to IP68
Data logging: 5,000 with A-scan image & gauge settings in one batch
Calibration Options: Velocity & material type
Transducer Probe Type: Dual and single element
Transducer Frequency Range: 1 - 10MHz
Display Refresh Rate: 25Hz
Units (selectable): mm or inches
Display Refresh Rate: 25Hz
Units (selectable): mm or inches
Operating Temperature: -30 to 60ºC (-20 to 140ºF)
Size (length x diameter): 229.0 x 60.33mm (9.0 x 2.4 inches)
Weight (including batteries): 680g (24.0oz)
RS232 Interface: Bi-directional
Packing List: Elcometer NDT UG20DL gauge, couplant, carry case, user manual, test certificate,3 x AA batteries, ElcoMaster® software, transfer cable, spare gaskets and lubrication set

Note: A transducer is not suppied with the Gauges, must be ordered separately


Details

Manual

Datasheet

Datasheet Transduser

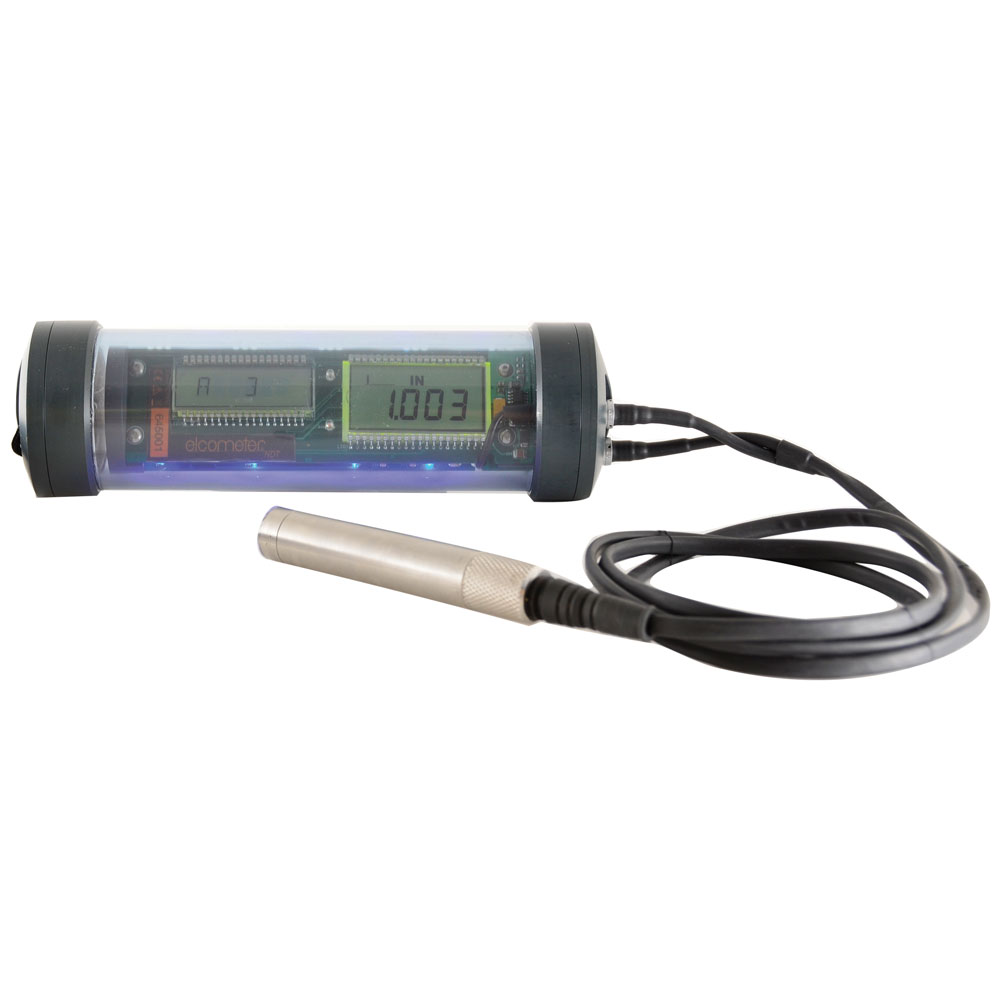

UG20DL Underwater Thickness Gauge

The UG20DL is an underwater material and coating thickness gauge ideal for offshore inspections.

Waterproof to a depth of 300 metres (1,000 feet) the UG20DL offers many features and benefits of the CG100 series in an easy to use brightly lit gauge.

Offering both dual & single element transducers the UG20DLs memory allows users to store up to 5,000 individual readings, together with the A-Scan waveform which can be downloaded to the data management software for further analysis on dry land.



UG20DL Thickness Gauge

Features:

  • 300 metre (1000 ft.) depth rating
  • Single membrane & dual element probe transducers
  • Automatic probe recognition & zero function
  • Pulse-Echo, Pulse-Echo w/Coating, Echo-Echo
  • Data Storage: Alpha Numeric & Sequential w/ID
  • Data output and storage: 5,000 readings
  • Download to ElcoMaster® data management software





Pulsed Echo (P-E) Measurement Mode Echo Echo (E-E) Measurement Mode Echo Echo Verify (EEV) Measurement Mode Pulsed Echo Coating Thickness (PECT) Measurement Mode Automatic Gain Control (AGC) A-Scan Display Mode





UG20DL Underwater Thickness Gauge

Technical Specification

Model & Part Number

UG20DL

Material thickness digits display

Measurement Mode

Dual Element: PE, EE (ThruPaint™), PECT Single Element: EEV (ThruPaint™)

Measurement Rate Manual:

4 readings per second

Measurement Range

PE: 0.63 - 500mm (0.025 - 19.999 inches)
EE: 2.54 - 102mm (0.100 - 4.000 inches)
PECT: 0.63 - 500mm (0.025 - 19.999 inches)
PECT: 10.0 - 254mm (0.001 - 0.100 inches)
EEV: 1.00 - 150mm (0.040 - 6.000 inches)

Measurement Accuracy

± 1% or ±0.1mm whichever is the greater

Measurement Resolution

0.01mm (0.001 inch)

Velocity Calibration Range

1250 - 13,995m/s (0.0492 - 0.5510in/ms)

    A-Scan

Stored in memory with each reading for review on PC

    Calibration setups

1 user programmable & 8 pre-calibrated velocities for:
aluminium, cast iron, iron, PVC, polyurethane, polystyrene, stainless steel & steel

    Waterproof - depth ratings

Maximum depth 300 metres (1,000 feet) - equivalent to IP68

Pulser type

Dual square wave pulsers

Gain

Automatic gain control (AGC) with 100dB range,
or selectable gain: vlow, low, medium hi or vhi

Timing

Precision 25MHz TCXO with single shot
100MHz 8bit ultra low power 8 bit digitizer

Data logging

  • 5,000 with A-scan image & gauge settings in one batch
  • sequential and grid logging
  • alpha numeric batch identification

Calibration Options

Velocity & material type

Transducer Probe Type

Dual and single element

Transducer Frequency Range

1 - 10MHz

Transducer recognition

Custom automatic (dual transducers) & manual - selectable from a list

V-path / dual path error correction

Automatic

Probe Zero

Automatic (dual transducers) & manual (via integrated probe disk)

Display

12.7mm (1/2") 4.5 digit LCD

Display Refresh Rate

25Hz

Units (selectable)

mm or inches

Backlight

on / off / auto

Repeatability / Stability Indicator

Battery Type

3 x AA alkaline

Battery Life (approximate)

50 hours (15 hours with backlight on)

Low Battery Indicator

Battery Save Mode

Auto

Operating Temperature

-30 to 60ºC (-20 to 140ºF)

Size (length x diameter)

229.0 x 60.33mm (9.0 x 2.4 inches)

Weight (including batteries)

680g (24.0oz)

Case design

High strength transparent plastic housing with
single, magnetically coupled, multifunction switch

Transducer connctor type

LEMO underwater connectors

RS232 Interface

Bi-directional

Packing List

Elcometer NDT UG20DL gauge, couplant, carry case, user manual, test certificate,
3 x AA batteries, ElcoMaster® software, transfer cable, spare gaskets and lubrication set
