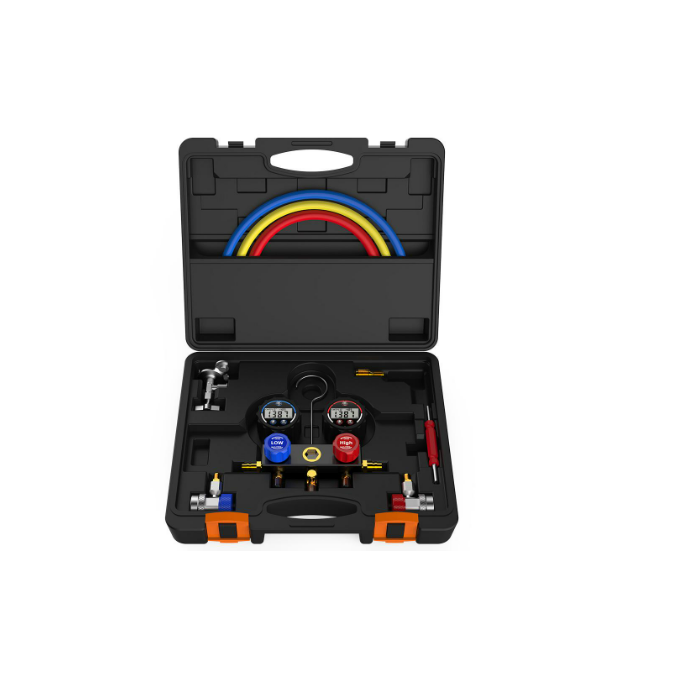

Elitech DMG-1 数字交流歧管仪表组 (-0.100~5.000 MPa)

Pressure Measuring Range: -0.100~5.000 MPa

Operating Temperature and Humidity: -10~60℃; 35%~85%RH

Resolution pressure: 0.001MPa; temperature: ±1℃

Accuracy pressure: ±0.5%FS (22℃~28℃); temperature: ±1℃

Battery Life: Six months

Power supply: 3V CR2450 button battery

Sampling Period: 1.2s

Battery Indicator displays "LOB" at low battery

Display 37mm x 17mm LCD/gren backlight

Measurement Units: MPa, kPa, bar, psi, kgf/cm2, mmH

Out-of-Range Alarm : FULL
