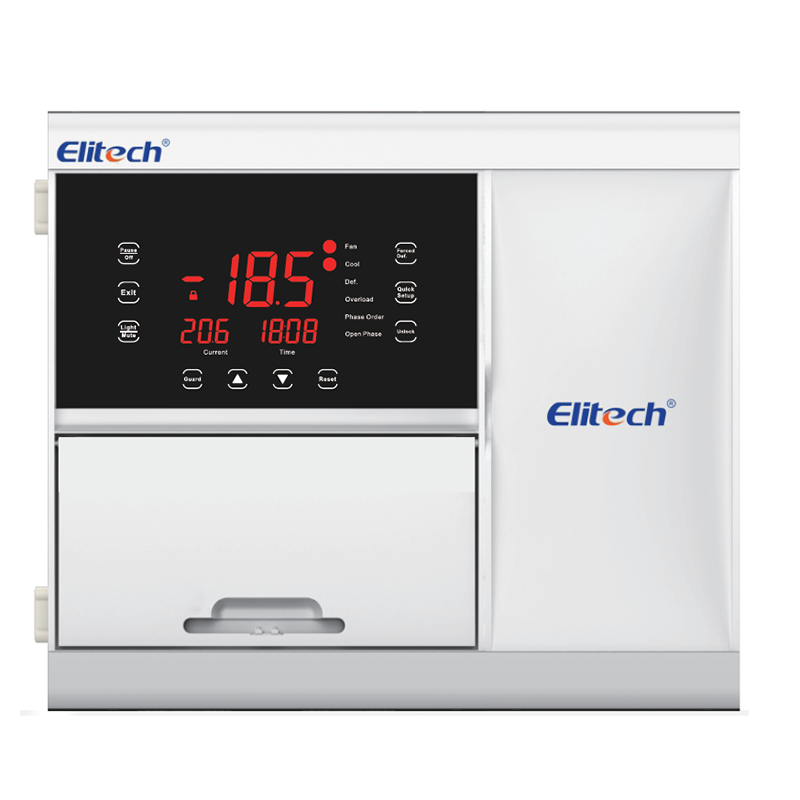

Elitech ECB-2030 三相电气控制面板 (0~80A)

Supply voltage: 3-phase, 5-wire or 3-phase 4-wire 380VAC±10% 50/60HZ

Applicable compressor power: 5HP, 10HP, 15HP

Condenser type: Air cooled

Defrost mode: Electric

Control range: -40℃~85℃

Control accuracy: ±1℃

Display resolution: 0.1℃

Temperature sensor type: NTC (10KΩ/25℃, B value 3435K) (sensor length 5m)

Compressor protection output delay: 1~120 min, adjustable

Current measuring range: 0~80A, equipment with instantaneous current exceeding 230A not allowed

Current measuring accuracy: ±3% (within nominal range of the transformer) and ±2A (0~30A)

Current display resolution: 0.1A

5-15HP dimensions (W*H*D): 380*329*140mm

Color: white

Service environment: temperature: -10℃~60℃; humidity: 20%~90%RH
