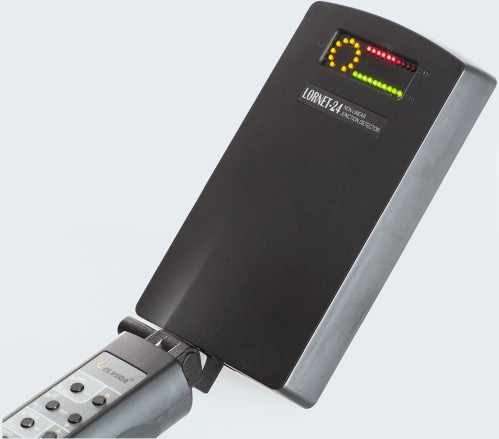

定位非线性组件Elvira Lornet 24

  • 制造商: ELVIRA
    Model: Lornet 24
    来源: Russian Federation
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Elvira

Model: Lornet 24

Origin: Russia

Warranty: 12 months

The frequency of the probing signal in the range: 2400MHz +/-

The maximum power of the probing signal (max. // average):

Pulse mode: 10W // 230mW

Pulse mode with small duty cycle (CW): 200mW

Receiver sensitivity, not worse than: -110dBm (-140BmW)

The adjustment range of the probing signal power: 20Bm

The dynamic range of the receive path: 24Bm

Battery life at maximum power in a pulsed (continuous)

mode: 3 h (1.5 h)

The operating temperature range: from +5 to +40º С

Device dimension: 39х10х6 (22х11х7)cm

The full weight of the item in active status: 0.7 kg

The full weight of the item in a bag: 1.7 kg


R-T unit with a control knob

2 removable (LI-ION) rechargeable batteries (3.6V),

Battery charging container,

Battery charging adaptor (220V)

Wireless headset and receiver

AC adapter for the receiving device (220V)

Transportation bag

Manual, Certificate

Chi tiết





An NLJD operation principle is based on illuminating a certain object under search with high power RF energy (either CW or pulsed) and on receiving the re-emitted object response at the multiples of the probing signal frequency (its second and third harmonics). The NLJD capability of detecting hidden electronics comes from the non-linear properties of semiconductors. Any electronic device will contain some printed circuit boards (PCB's) with conductors (virtual antennas) to which various semiconductor elements (diodes, transistors, microchips) are connected. For a high frequency probing signal all these elements can be considered as non-linear reflectors. This high frequency probing signal will induce in these conductors an alternating emf being converted by elements with a non-linear volt-ampere characteristic into RF signals on multiples (harmonics) of the probing frequency. These harmonics will be eventually re-emitted into space and detected by the NLJD's receivers tuned to these very frequencies. Detecting the 2-d and 3-rd harmonics of the probing signal by NLJD's receivers will mean that a hidden radioelectronic device is present in the illuminated area regardless of whether this device is powered on or switched off. It is conventionally assumed that the detected non-linear object is artificial in origin if the second harmonic's level exceeds that of the third one. If opposite is the case then the detected object is considered a natural non-linear junction of MOM-type (metal-oxide-metal). However, the NLJD application practice tells us that the mentioned criterion of the object origin identification may not always work well (e.g. a rusty metal element may exhibit a higher second harmonic level). In such a case additional identification methods may prove useful. This is where harmonics spectrum analysis will come really handy. In an ambiguous situation one may want to apply some physical impact on the object under search (e.g. knocking at it) while observing the second and third harmonics spectrum (or listening to the demodulated harmonics response in the headphones). The natural objects under a physical impact will show spectrum widening (regrowth) whereas the harmonics spectrum of artificial (electronic) object will remain largely unchanged. During demodulation the spectrum regrowth will manifest itself as a rustling noise in the headphones.
