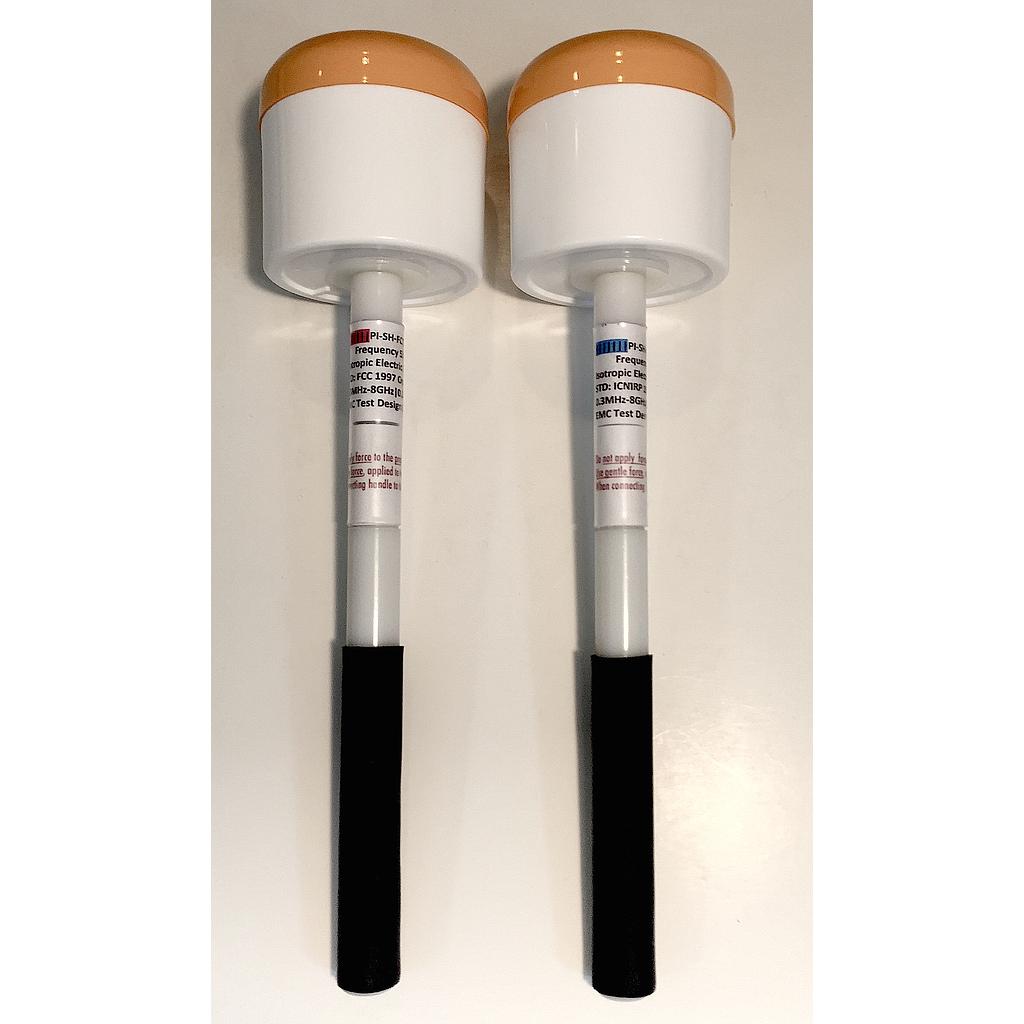

EMCTD PI-SH-ICNIRP 各向同性超宽带电场探头 (100 KHz- 8 GHz; 0.5 - 1000% of STD (功率密度))

• Frequency range: 100KHz-8 GHz (Occupational exposure)

10 MHz-8 GHz (General public: ICNIRP)

3 MHz-8 GHz (General population: FCC)

• Diode based: 3-Axial isotropic sensor, composite output.

• Power density range: 0.5-1000% of STD.

• Probe power nonlinearity: Less than 3 dB (0.5-1000%).

• Readout power nonlinearity: Less than 1 dB (0.5-1000%).

• Rotational isotropicity: +/-1dB (0.1 MHz-1GHz), +/-3dB(1-8GHz)

• Probe frequency response: Per STD, deviation - less than 3 dB (documented).

• Calibration accuracy: 1 dB (@100 MHz).

• Temperature: 0-50°C,

• Humidity: RH 10-90%, non-condensing.

• Temperature error: <0.05 dB/°C

• Calibration: UK NPL (UK National Physics Lab) traceable.

• Small size: LxD: 9.0x2.25 inch, 230x58 mm.

• Weight: 0.2 lb, 100 g.

• Supporting equipment: RFP-05M meter
