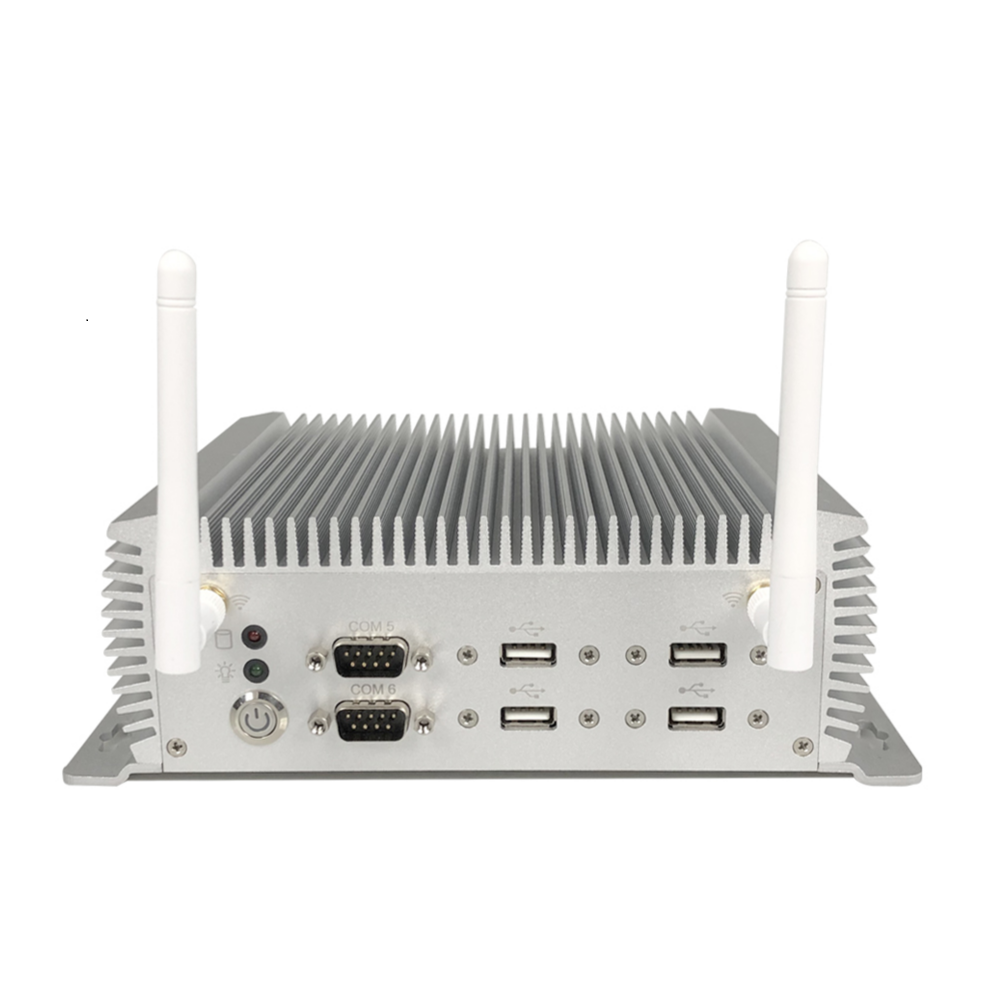

EMIN ATBOX-G1 IPC

- CPU: Intel Core i5-4200U.

- Memory: RAM 8GB.

- Storage: SSD 512GB.

- OS: Windows 10/Linux.

I/O port:

- Front ports: 1* Switch, 2* LED(red for power, green for hard disk), 1* Reset, 1* CMOS clear button, 1* SIM Card slot, 1* MIC, 1* SPK.

- Backside port: 2* WIFI, 1* DC IN, 4* USB3.0, 2* LED(red for power, green for hard disk), 1* HDMI, 1* VGA, 2* RJ45 LAN, 2* COM (can change to RS232/422/485 from BIOS), 1* GPIO, 1* 2Pin Phoenix terminal power supply input.

- Internal ports: 1*M-SATA3.0 port, support 6Gb/s, 1*SATA3.0 port, support 6Gb/s 1*mini PCIE-half(Pcie bus) port for WiFi module 1*mini PCIE-full(Usb bus) port for 4G module.

- SIM slot Micro SIM, with PUSH function.

Power and Working Environment:

- Input: DC100-240V AC/50-60Hz.

- Output: DC 12V/5A.

- Consumption: 15W.

Product Dimension & Details:

- Dimension: 234W*212H*50D mm.

- Operating temperature: 0ºC ~ 60ºC.

- Storage temperature: -20ºC ~ 80ºC.

- Relative humidity: 0% ~ 90% (non-condensing).

SUPPORT WIFI, 3G,4G.
