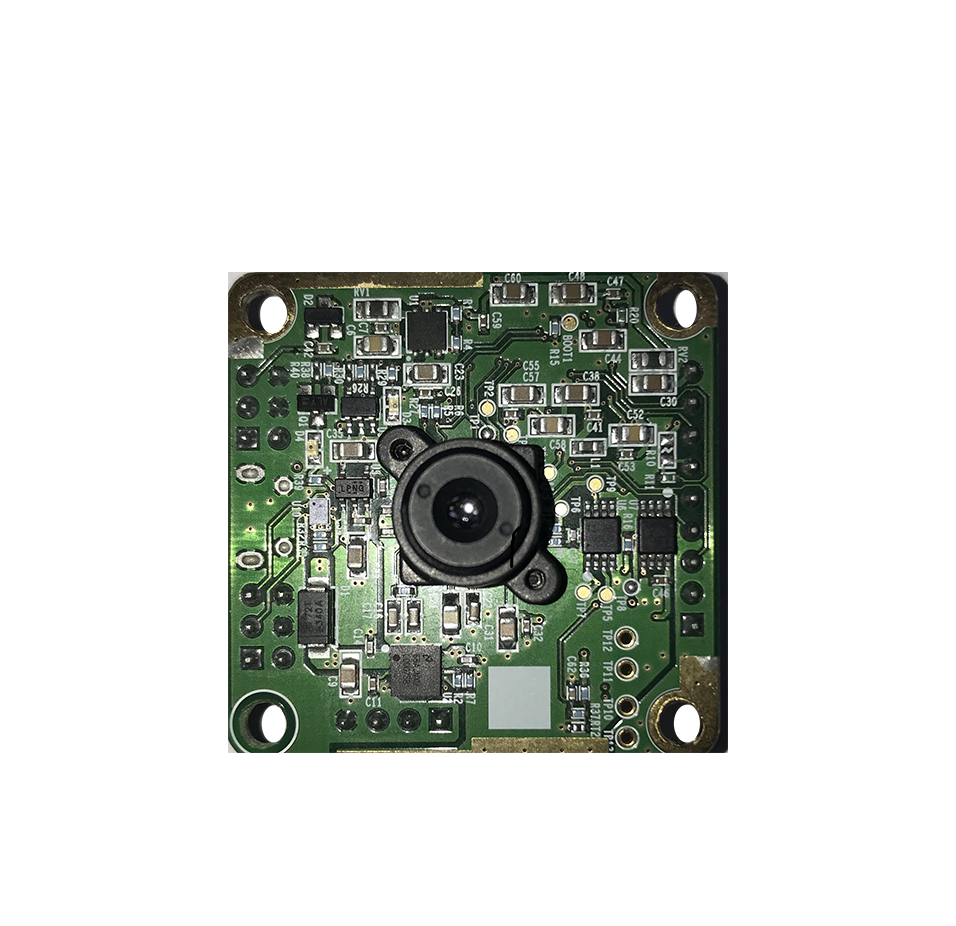

EMTAKE TW3530 Full CMOS 热传感器模块 (80 x 60; 30°)

Resolution: 80 x 60

Pixel Size: 35 um

NETD: < 100 mk

sensor type: CMOS, Uncooled Amorphous Silicon(a-Si) Micro bolometer

Lens: 30°

Spectral Range: 8um ~ 14 um ( LWIR )

Measurement Temperature: -10℃ ~ 100℃

Relative temperature sensing power: 0.1℃ @30℃

Measurement error rate: ±3℃ or 5%(at30℃)

Shutter type: Shutterless or Shuttered (option)

Power: 5.0V (DC)

Power Consumption: 200mW ↓

Operating Temperature: -10 ~ 50℃

Interface: USB / SPI / I2C / GPIO

Delivery Temperature: -40℃ ~ 105℃

Size: 40mm x 40mm or 35mm x 25mm

Standard configuration: Sensor Core + Digital I/F (USB/SPI/I2C/GPIO/Reset etc
