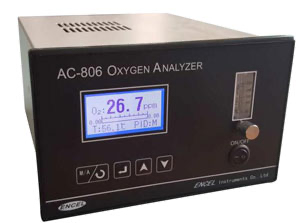

ENCEL AC-806 Oxygen Analyzer (0.1ppm~50%)

Measuring range: 0.1ppm~50% O2

Automatic range shifting: 0~500ppm, 0~5000ppm, 0~5%, 0~50%, 4 gears in total (automatic shifting).

Basic error: ±2%FS

Repeatability error: ≤1.5%

Response time: <30s

Zero point drift: ±2%FS/7d

Range drift: ±2%FS/7d

Output signal: 4~20mADC (external load allowed <800Ω)

0~10mA DC (external load allowed<1600Ω)

Alarm relay contact capacity: 220VAC/1A

Power consumption: ≤90W

Power supply: 220V±10%AC; 50Hz±5%

Ambient temperature: 0~40℃

Relative humidity: no more than 90% (except condensation)

Atmospheric pressure: local atmospheric pressure

Sample gas temperature: <100℃

Sample gas pressure range: normal pressure or micro pressure

Sample gas flow: 500~700ml/min

Instrument dimensions: 240×150×280mm (width×height×depth)

Installation opening size: 228×138mm

Weight: about 8kg
