Working power supply: AC220V ± 10% 50Hz
Display mode: LCD display
Temperature control range: Room temperature ~ 100 ºC, continuously adjustable
Sample quantity: 3 channels
Timing range: 0.1s ～ 999.9s
Timing accuracy: ± 0.1S
Bath volume: Ф300㎜ × 340mm (diameter × height)
Test tube capacity: 500ml
Temperature measuring element: High precision PT100 platinum resistance
Ambient temperature: 5 ℃~35 ℃
Relative humidity: ≤85%

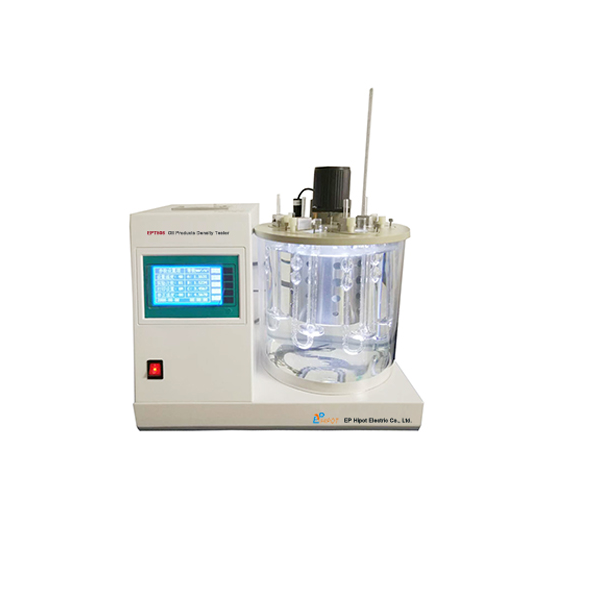

EPT506 Oil Density Meter is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products – Laboratory determination of density - Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum. Widely used in oil, power, military, chemical, railway, scientific research and other industries.
Using advanced single-chip intelligent temperature control, LCD screen displays temperature, time, parameters in time.
After entering the relevant data, the test results are automatically calculated, and the measurement results are automatically printed and stored.
10L constant temperature bathtub, outer plexiglass insulation cover, even temperature distribution in the bath, good temperature control effect.
The keyboard sets parameters such as control temperature value, fine-tuning temperature value, test times.
