Reference parameters of EPTC-D Control Unit:
Input Voltage （V）: 380
Capacity （kVA）: 40
+ Current(A): 400
+ Voltage(V): 100
HV voltmeter (kV/V): (50/100/150)/100
Approx. Oversize (m3): 70×60×115
-Timing range: 0-9999S
-Working temperature: －20℃ to 50℃
-Voltage precision: ≤1.5% ±1 digit (F.S)
-Current precision: ≤1.5% ±1digit (F.S)

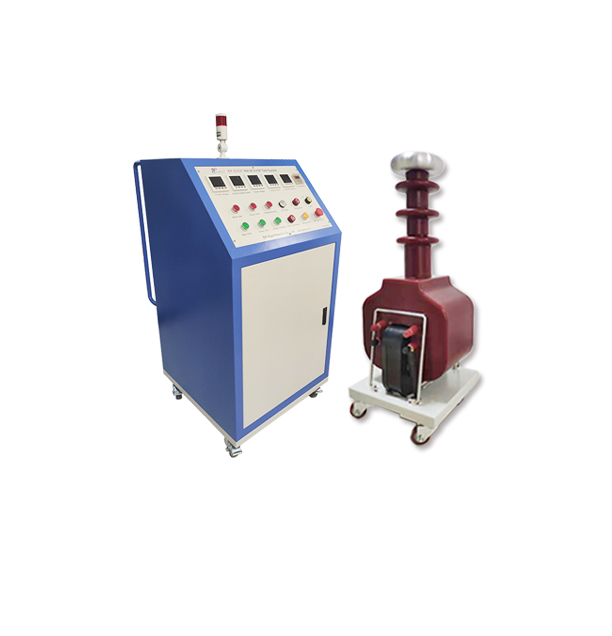

EPTC-D Series AC/DC Hipot Test Set is suitable for hipot dielectric withstand test on various power electric products, units, insulating material and etc.
-Electric motor driving, controlling by push button.
-High anti-interference ability.
-LED display. Real time monitoring High voltage (HV) voltage, Low voltage (LV) current, timing.
-Full protection functions: over-current, zero-starting, sound light alarm. Press Emergency button if any abnormal happened.
-New type over-current relay, more accurate and reliable, to ensure the safety of the people and device.
-The control unit: Box Type/Table Type/Bench Type
-Both control unit and HV unit are mounted with wheels, easy to move.
-Oil type, Dry type or SF6 Gas type testing transformers can be selected as HV source unit.
-AC or AC/DC test is selected by customer.
5kVA or below, Box type
10kVA or above Table type
50kVAor above Bench type
