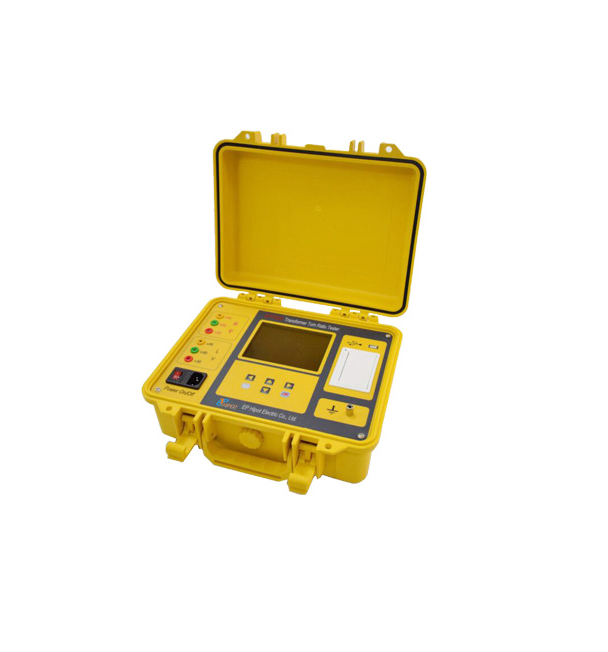

EPHIPOT EPTTR-D 变压器匝数比测试仪 (0.9~10000)

Range: 0.9~10000

Accuracy:

±(Reading×0.1%+2 words)(≤500)

±(Reading×0.2%+2 words)(>500≤3000)

±(Reading×0.3%+2 words)(>3000)

Resolution ration:

0.9~9.9999(0.0001)

10~99.999(0.001)

100~999.99(0.01)

1000~9999.9(0.1)

10000 and above(1)

Working power supply: AC220V±10%, 50/60Hz

Instrument weight: 3.8 kg

Instrument dimension: 325 mm(L)×225 mm(W)×125 mm(H)

Use of temperature: -10℃~50℃

Relative humidity: ≤90%,No dew

Details

General Information:

Turns ratio test is very important in order to find out the transformer has the right ratio corresponding on its rated voltage in primary and secondary. EPTTR-D is three phase, automatically test set specially designed for turns ratio, group test, PT and CT polarity measurements of power, distribution and instrument transformer.

Features:

- It has the function of blind measurement, that is, to perform variable ratio and group test when there is no connection between high and low voltage.

- Based on the test of conventional transformer, Z-type transformer and PT sample, the polarity test function of CT variable ratio is added, and the application field is wider

- Wide range and high accuracy, the variable ratio measurement range can reach 10,000, and the test accuracy can be guaranteed 0.3% when the maximum value is 10,000.

- It has perfect protection functions such as reverse connection protection and output short circuit protection.

- 5.6-inch super industrial high-brightness color LCD screen, still visible under strong sunlight.

- Equipped with printer, facilitate data printing

- It can be stored locally and on USB memory.
