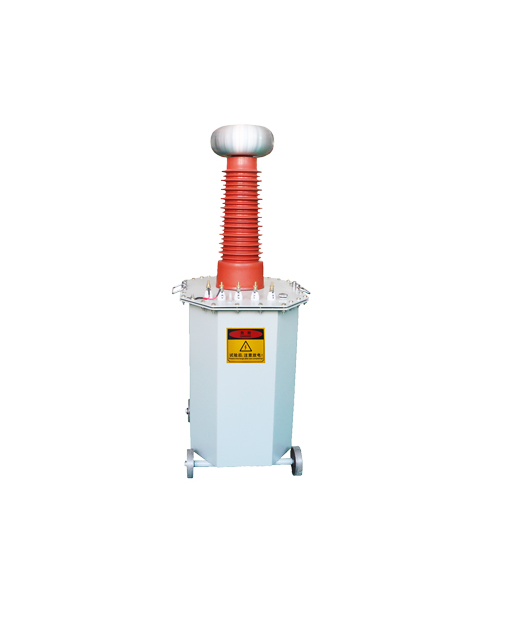

EPHIPOT YDJ1.5/50 油浸式高压试验变压器 (1.5kVA)

Capacity (kVA): 1.5

LV Side:

 + Voltage (V): 200

 + Current (A): 7.5

HV Side:

 + Voltage (kV): 50

 + Current (mA): 30

Measuring Turns Ratio: 500

60 mins Temperature Rise (℃): 50

Impedance Voltage (%): 10

No Load Current (%): <4

Weight (kg): 19.5

Appearance (L*W*H) (mm): 200Х275Х640


YDJ Series Oil Testing Transformer

YDJ Series Oil Testing Transformer can provide high voltage for various HV testing, and AC/DC HV output, to provide HV voltage to HV test.

EP Hipot Electric oil type transformers are virtually maintenance free and are manufactured in accordance with industry and international standards including ISO 9001.


- Compact in design, low cost and maintenance free.

- Hermetically sealed with good insulation ability.

- Stable accuracy over life time

- Over voltage protection.

- Octagonal shell, a movable wheel can be installed for 10KVA or above testing transformers, easy to move.
