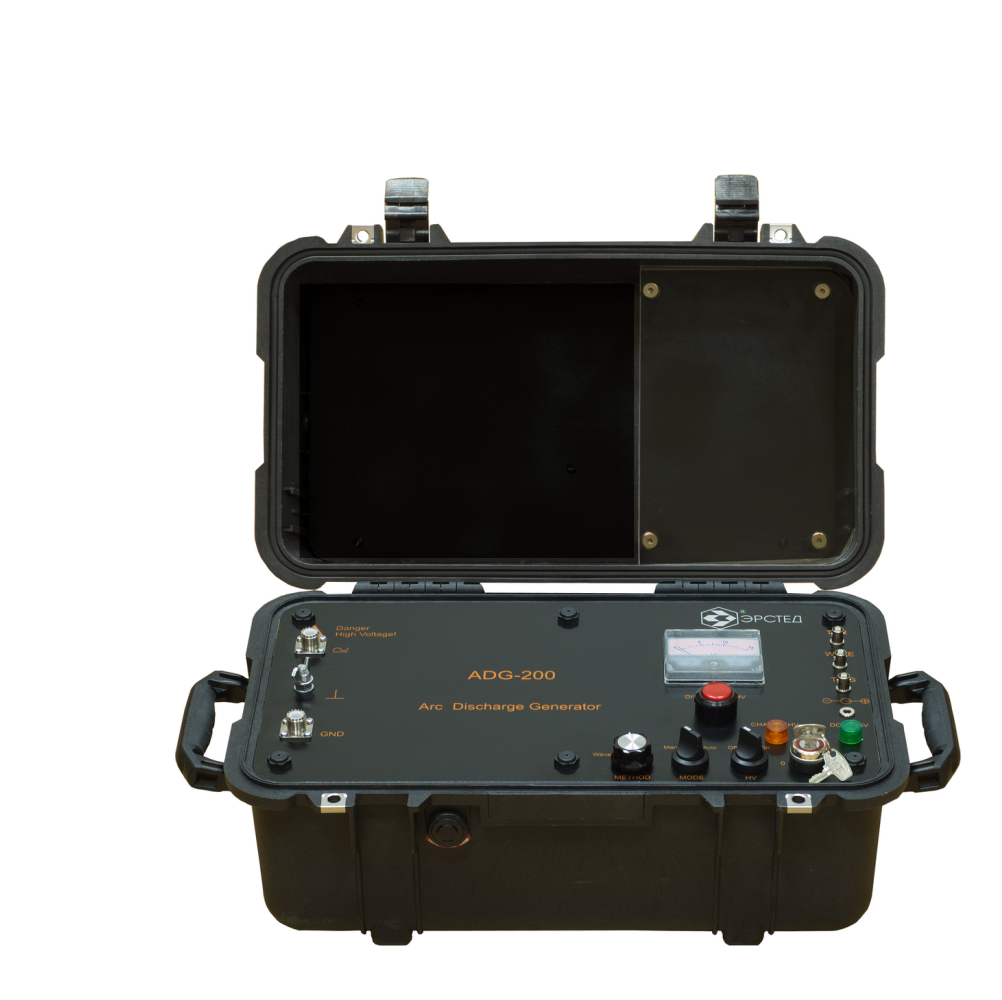

Ersted ADG-200 电弧放电发生器 (0-10kV)

Features:

- Completely self-powered device;

- Small size - a complex of free fits into a car trunk

- Light weight

Specifications:

- Output voltage range: 0-10kV

- Levels of output voltage: 4kV, 10kV

- Charge modes: + Direct charge of the cable (AUTO), for leakage current <10mA

                            + Charge the built-in capacitor (MANUAL), for leakage current >10mA

- Embedded storage capacitors: 4µF/10kV

- Maximum stored energy: 200J

- Arc stabilization time: 1ms-10ms (depends on external conditions)

- Maximum allowable pulse voltage on all low-voltage connectors, designed for connection to the TDR

+ on the TDR connector: 60V;

+ on the WAVE connector: 120V;

+ on the TRIG connector: 20V

- Power supply: Autonomous (battery)

- The number of “shots” on a fully charged battery: 100

- Operating temperature range: from -20°C to +40°C

- Dimensions: 520x320x300mm

- Weight: 17kg (without battery)
