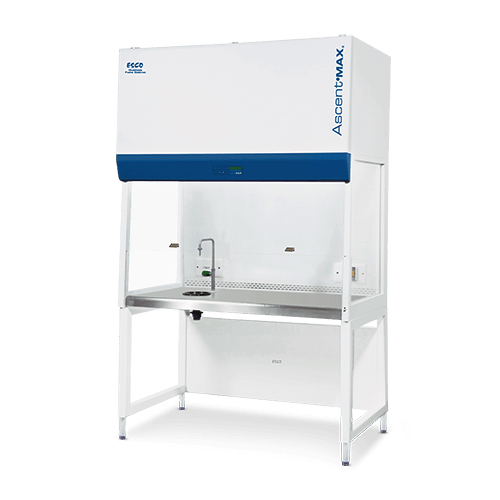

ESCO ADC-5D1-PP Ascent™ Max 无管道油烟机 (300 W, 1575 x 596 x 765 mm)
制造商: ESCO Model: ADC-5D1-PP P/N: 2040149 - 报价要求
- 联系
Nominal Size: 1.5 meter
External Dimensions: (W x D x H): 1645 x 736 x 1455 mm
Internal Work Area: (W x D x H): 1575 x 596 x 765 mm
Standard Filtration Elements:
Pre-filter: Disposable, non-washable polyester fibre, 85% arrestance, EU3 rated
Main filter*: Activated carbon with granular media bed (8 different filter types available, codes A to H)
Total Weight of Carbon Filter: 2 x 17.4 Kg each
Control System: Esco Sentinel™ Silver Microprocessor Controller
VOC Sensor: Optional
Airflow alarm: yes
AutoPurge Slots: yes
Inflow Air Velocity: 0.40 m/s - 0.6 m/s (80-120 fpm)
Sound Emission: ≤65 dBA
Fluorescent Light Intensity: >1000 lux (>93 foot-candles)
Hood Construction:
Main Body: 1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester IsocideTM antimicrobial powder coated finish
Back Walls: Tempered Glass
Side Walls: Tempered Glass
Work Top: 1.5 mm (0.06") 16 gauge stainless steel, type 304, with 4B finish
Sash:
Sloped Front: 3°
Sash Type: Vertical Sliding
Net Weight: 245 kg
Electrical:
220-240 VAC, 50 Hz, 1Φ
Cabinet Full Load Amps (FLA): 3A
Optional Outlets (FLA): 5 A
Cabinet Nominal Power: 300 W
Cabinet BTU/Hr: 1024
*Hood model order codes do not include filters. Order filters separately. When specified at time of order, filters will be factory installed.
**Hood only, excludes optional stand.
