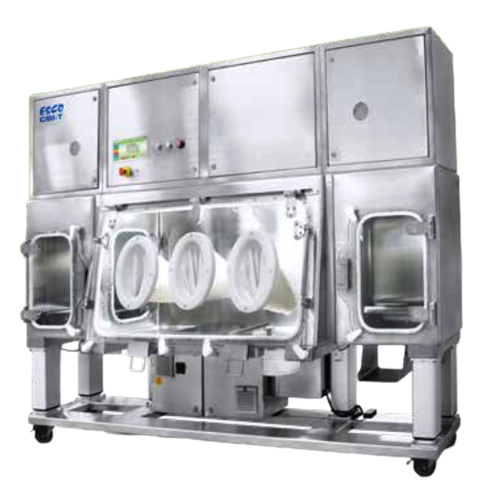

ESCO CBI-T-2G8 Containment Barrier Isolator - Turbulent (1.2 m)

Main Chamber Nominal Size (mm): 1.2 meter

Process Chamber External Dimension - (W x D x H): 1.20 m x 0.64 m x 0.84 m

Pass-through Chamber External Dimension - (W x D x H): 0.6 m x 0.52 m x 0.84 m (2’ x 1.7’ x 2.8’)

External Dimensions with 1 Pass Chamber - (W x D x H): 1.83 m x 0.70 m x 2.28 m

Glove Port Diameter (mm): 200 mm x 300 mm

Glove Port Quantity: 2

Chamber Pressure: Negative Pressure

Airflow Type: Turbulent Flow

Chamber Environment: ISO Class 8 (Grade D)

Filter Type - Inlet: HEPA (H14) Cartridge Filter

Filter Efficiency - Inlet: 99.98%

Filter Type - Exhaust: HEPA (H14) Cartridge Filter

Filter Efficiency - Exhaust: 99.98%

Lighting Level: >650 Lux

Sound Level: ≤ 80 dBA

Air Change Per Hour:

Process Chamber: 48

Pass Chamber: 61

Air Volume (m3/h):

Process Chamber: 31

Pass Chamber: 16

Isolator Construction:

Main Body: SS 316L

Internal Chambers: SS 316L

Support Frame and Service Housing: SS 304

Electrical Requirements (by Client): 230 VAC, 50/60 Hz, 1Ø

Compressed Air Requirement (by Client): 2 Bar-g Pressure at 5 L/sec

Exhaust Duct requirements (by Client): 4” (101.6mm)

Net Weight: TBD
