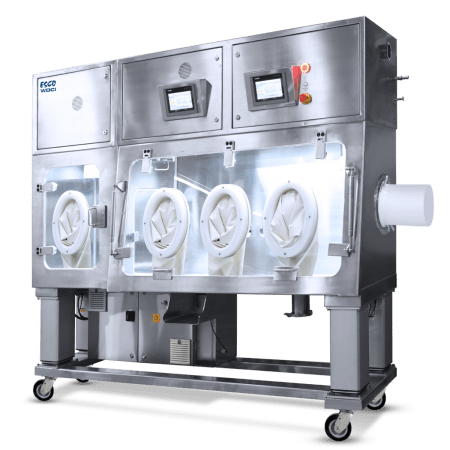

ESCO WDCI - 3G Weighing and Dispensing Containment Isolator (1590 x 633 x 842 mm)

Nominal Size Process Chamber: 1590 mm

External Dimensions (W x D x H):

Without Base Stand: 1600 x 800 x 1730 mm

With Adjustable Base Stand (Min): 1600 x 800 x 2080 mm

With Adjustable Base Stand (Max): 1600 x 800 x 2360 mm

Internal Dimensions (W x D x H): 1590 x 633 x 842 mm

Glove Port Height Min: 950 mm

Glove Port Height Max: 1300 mm

Chamber Pressure: Negative Pressure

Airflow Type: Turbulent Flow

Airflow Volume - Maximum (Intake & Exhaust) - Normal Operation: 21 m3/h

Airflow Volume - Maximum (Intake & Exhaust) - Glove Breach Protection: 75 m3/h

Filter Type - Inlet: H14 Cartridge Filter with PVC Shroud

Filter Efficiency - Inlet - Safe Change: 99.999%

Filter Efficiency - Exhaust - Safe Change: H14 Push Push Filter with SS 316L Housing

Lighting Level: ≥ 650 lux (≥ 60 foot-candles)

Sound Level: ≤ 68 dBA

Isolator Construction:

Chamber: SS 316L

Service Housing: SS 304

Support Frame: SS 304

Anti-vibration weighing mount: Black Granite for Analytical Weigh Scale ✔

Isolator Finish:

Chamber Internal: ≤ 0.4 Ra

Chamber External: ≤ 0.6 Ra

Service Housing External: 0.6 Ra

Support Frame: 1.0 Ra

Controls:

Color 6” HMI - Siemens - CE Marked ✔

Operator Specific Login sets Isolator Working Height for Ergonomic Comfort (Selectable) ✔

Electrical Requirements (By Client):

110-120 V, AC, 50 Hz/60 Hz, 1Ø ✔

220-240 V, AC, 50 Hz/60 Hz, 1Ø ✔

480 V, AC, 50 Hz/60 Hz, 3Ø ✔

Compressed Air Requirements (By Client): 6 Barg Pressure at 5Itr/sec ✔

Exhaust Duct Requirements (By Client) - Thimble Connection Required: 101.6 mm
