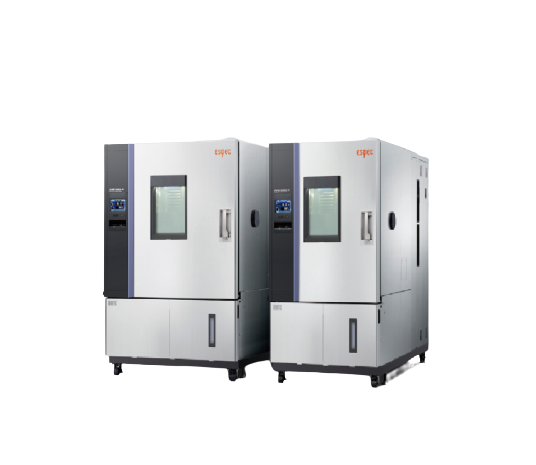

ESPEC ARG−0680 Temperature chamber (−75~180℃, 680 L, BTC)

System: Balanced Temperature Control (BTC) system

Temperature performance:

        Temp. range: −75 to ＋180℃ (−103 to ＋356℉)

        Temp. rate of change:

Heat up rate: 6.0 K/min

Pull down rate: 4.2 K/min

         Allowable heat load: 4500 W

Capacity: 680 L

Inside dimensions mm: W850×H1000×D800

Outside dimensions mm: W1050×H1955×D1805

Weight: 615 kg

Utility requirements:

         Allowable ambient conditions: 0 to ＋40℃ (＋32 to ＋104℉) / Up to 75%rh

         Power supply: 380V AC 3φ50Hz: 28 A

Exhaust heat quantity kJ/h (kcal/h): 39600 (9464)
