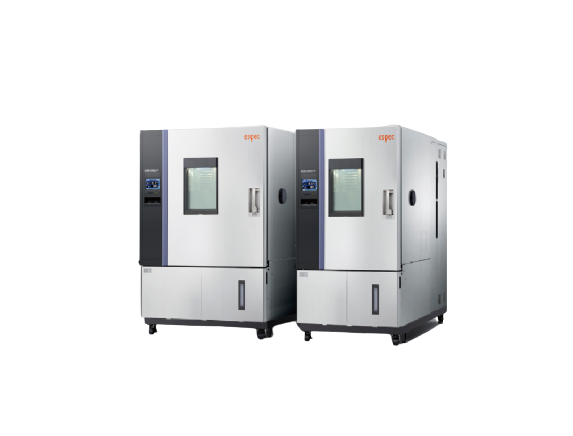

ESPEC ARL−1100 Temperature & humidity chamber (−45~180℃, 10~98%rh, 1100 L, BTHC)

System: Balanced Temperature & Humidity Control (BTHC) system

Temperature performance:

        Temp. range: −45 to +180℃ (−49 to +356℉)

        Temp. rate of change:

Heat up rate: 4.7 K/min

Pull down rate: 4.4 K/min

         Allowable heat load: 4500 W

Temp. & humid. performance:

         Temp. & humid. range: +10 to +95℃ / 10 to 98%rh

         Allowable heat load: 500W

Capacity: 1100 L

Inside dimensions mm: W1100×H1000×D1000

Outside dimensions mm: W1300×H1955×D2005

Weight: 600 kg

Utility requirements:

         Allowable ambient conditions: 0 to +40℃ (+32 to +104℉) / Up to 75%rh

         Power supply: 380V AC 3φ50Hz: 25 A

Exhaust heat quantity kJ/h (kcal/h): 39600 (9464)

Detail

Datasheet:
