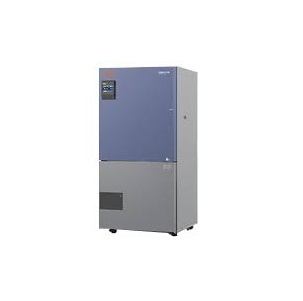

ESPEC CSH-112 Stability Test Chamber (20°C~75°C, 50%rh~90%rh, 235L, BTHC)

System: Balanced temperature and humidity control system (BTHC system), Virtual air jacket system

Performance:

       Temp./humid. range : +20°C ~ +75°C/50%rh ~ 90%rh

       Temp./humid. max-min range: ±2˚C/±5%rh

Volume: 235 L

Inside dimensions: W600×H700×D560 mm

Outside dimensions: W740×H1550×D774 mm

Weight: 200 kg

Utility requirements:

Allowable ambient conditions: +5 ~ +40°C

Power supply: 220V AC 1ø, 50/60 Hz: 5.9A

      230V AC 1ø, 50 Hz: 5.7A

ACCESSORIES:

• Key (for door): 2

• Shelf/bracket (stainless): 3

         CSH-112/CSH-112HG: W500×D510 mm

         CSH-122/CSH-122HG: W650×D610 mm

         CSH-132/CSH-132HG: W1000×D710 mm

• Cartridge fuse (7 A): 1

• Temperature-detecting terminal connector: 1

• Humidity-detecting terminal connector: 1

• Filter for water: 1

• Water tank (about 10 L): 1

• Hose with quick joint: 1

• Level gauge: 1

• Silicon rubber plug: 1

• Operation manual (CD, Installation manual): 1 set

• Inner door (reinforced glass), Power cable (about 2m), Drain hose (x2), Temperature detect terminal (Pt100), Humidity sensor terminal, External alarm terminal, Ethernet port (LAN port), Through-hole for sensor (ø25 mm, right side), Quick joint for water circuit drain, Leveling feet casters (x4), Dew tray
