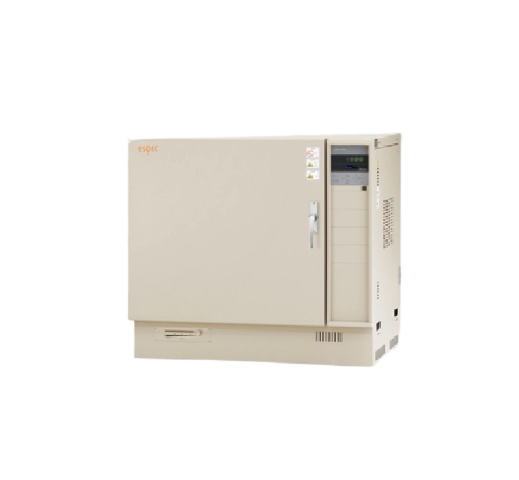

ESPEC STPH-202 Ultra-High Temperature Chamber (20℃~500℃, 216L)

System: Forced hot-air circulation / ventilation system

Performance:

     Temp. range: Ambient temp.＋20℃ to ＋500℃

     Temp. heat-up time: Ambient temp. to ＋500℃ within 60min.

Inside dimensions W×H×Dmm (in): 600×600×600 (23.6×23.6×23.6)

Outside dimensions W×H×Dmm (in): 1340×1260×945 (52.8×49.6×37.2)

Capacity (L): 216

Weight (kg): 250

Allowable ambient conditions: Temp.: 0 to ＋40℃

                                              Humid.: to 75％rh

Utility requirements:

     Power supply: 200/220V AC 3φ 50/60Hz,

                           380V AC 3φ 4W 50Hz

     Max. power consumption: 8.3 kVA

INCLUDED ACCESSORIES:

● Shelf (stainless steel wire): 2

● Shelf bracket (stainless steel): 2 sets (4)

● Cartridge fuse: 2

● User's manual: 1 set
