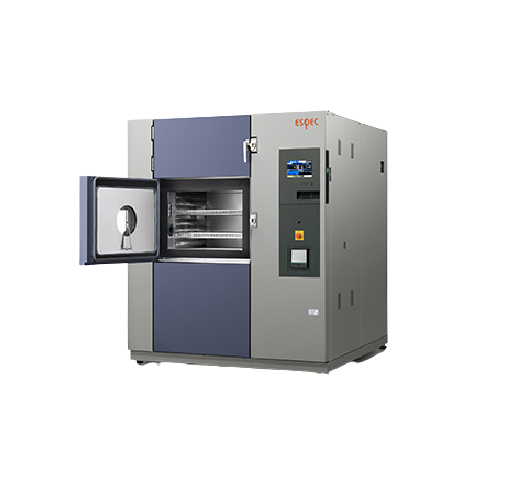

ESPEC TSA-203D-W Air to Air Thermal Shock Chamber with Humidity (70~150°C, -70~10°C; Plastic mold IC 10kg)
制造商: ESPEC Model: TSA-203D-W 保障: 12 Month - 报价要求
- 联系
Power supply: 200 V AC, 3 ohm, 3W, 50/60 Hz (Can support any power supply voltage as an option)
Method: Two-zone and three-zone using damper switching
Performance:
Test area:
High-temp. exposure range:
Thermal cycle test: +70°C to +150°C
Dew cycle test: -10°C to +100°C
Low-temp. exposure range:
Thermal cycle test: -70°C to +10°C
Dew cycle test: -40°C to +10°C
High temperature and humidity chamber:
Max pre-heat setting temperature: +150°C
Humidity range: 40 to 95%rh (For dew cycle test)
Temperature heat-up time: Within 30 minutes from -10°C to +100°C
Temperature pull-down time: Within 60 minutes from +20°C to -10°C
Low temperature chamber:
Min pre-heat setting temperature: -75°C
Temperature heat-up time: Within 30 minutes from -75°C to +10°C
Temperature pull-down time: Within 60 minutes from ambient temperature to -75°C
Test area dimensions: W650×H460×D670mm
Outside dimensions: W1670×H1900×D1870mm
Weight: Approx. 1550 kg
