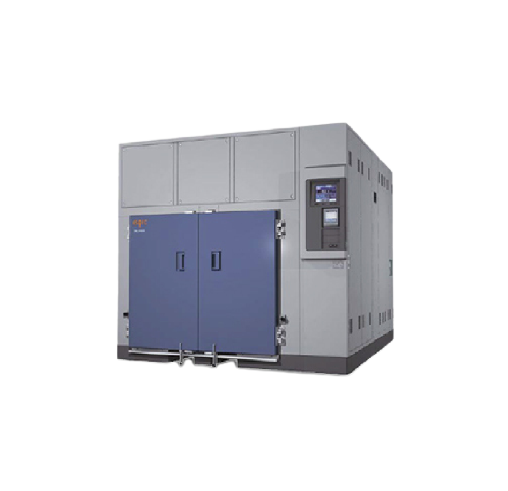

ESPEC TSA-2200H-W Large Capacity Thermal Shock Chamber (60°C~180°C, -60°C~ -10°C)

Method: Two-zone by means of damper switching (three-zone optional)

High-temp. exposure range: +60°C to +180°C

Low-temp. exposure range: -60°C to -10°C

Hot chamber temperature heat-up time: Within 30 minutes from ambient temperature to +200°C

Cold chamber temperature pull-down time: Within 90 minutes from ambient temperature to -75°C

Test area: W2000mm x H1100mm x D1000mm

Outside dimensions: W3120mm x H1990mm x D2972mm

Weight: Approx. 4300kg

Power supply voltage: 200 V AC, 3 ohm, 3W, 50/60 Hz (Can support any power supply voltage as an option)
