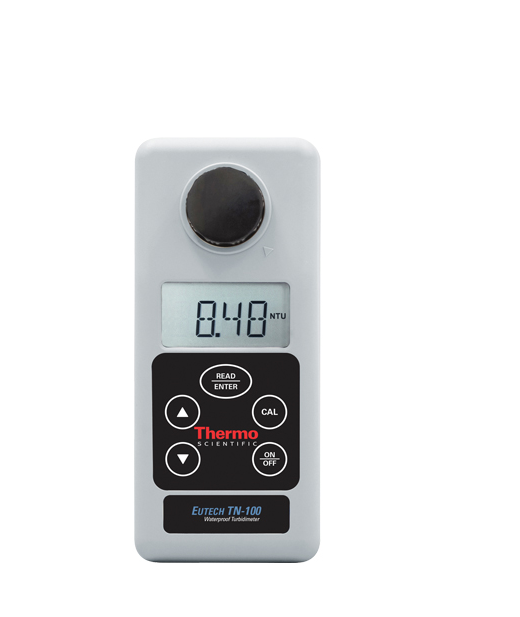

Eutech ECTN100NOSTDS 便携式浊度仪 (0 ~ 2000 NTU)

- Range: 0 to 2000 NTU

- Automatic Range Selection

0.01 to 19.99 NTU;

20.0 to 99.9 NTU;

100 to 2000 NTU

- Resolution:

0.01 NTU (0 to 19.99 NTU);

0.1 NTU (20.0 to 99.9 NTU);

1 NTU (100 to 2000 NTU)

- Accuracy:

< 0.1 NTU for 0.02 NTU standard;

±2 % of reading ±1 digit for 0 to 500 NTU;

±3 % of reading ±1 digit for 501 to 2000 NTU

Repeatability:; < or = ±1 % of reading

- Calibration: Up to 4 points

Calibration Standards: 0.02 NTU, 20.0 NTU, 100 NTU, 800 NTU

Response Time: < 6 secs for full step change

Sample Volume: 10 mL

Light Source: Infrared-emitting diode (850 nm wavelength)

- Operating Temperature Range: 0 to 50 ºC

Sample Temperature Range: 0 to 50 ºC

Enclosure Type & Rating:; ABS plastic & IP67 rated

Power: 4 x 1.5 V ‘AAA’ alkaline batteries (> 1200 readings)

- Dimensions (LxWxH)

Meter: 15.5 x 6.8 x 4.6 cm

Boxed: 35.5 x 16.5 x 10.5 cm

- Weight

Meter: 200 g

Boxed: 1,160 g

Supply: Waterproof TN-100 handheld turbidimeter, set of 7 sample vials, lint-free cloth, silicone oil, batteries, and hard carrying case
