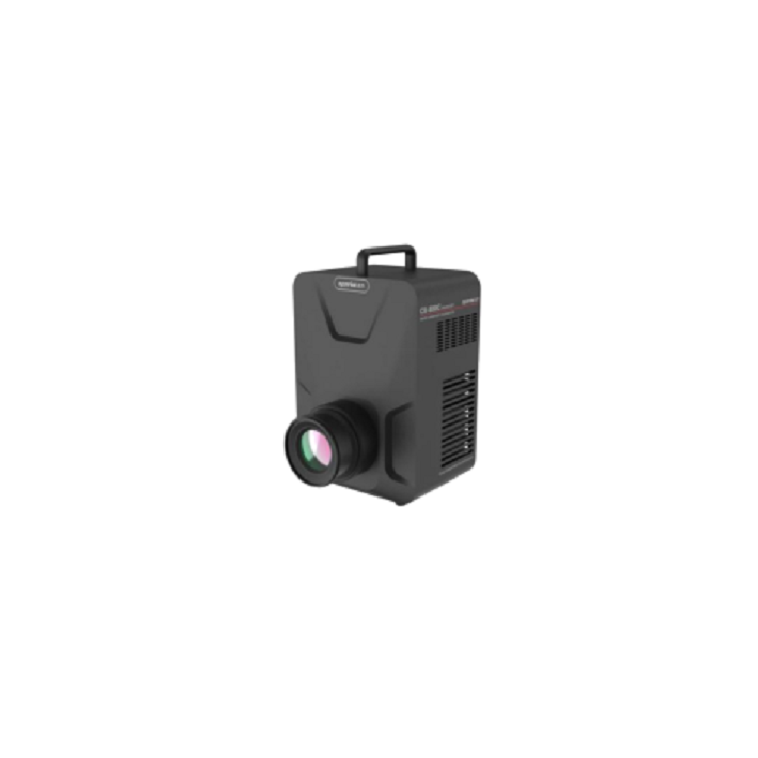

EVERFINE CX-800C 成像亮度计 (0.0005cd/m2~6000cd/m2~600,000cd/m2)

Measured parameters: Luminance、Luminance distribution、Chromaticity、Chromaticity uniformity

Luminance measurement error (standard A light source): ±3%

Luminance range: 0.0005cd/m2~6000cd/m2~600,000cd/m2

Accuracy of color coordinates (standard A light source): ± 0.003

Chromaticity coordinate repeatability: ±0.0001

Lens focal length: 56 mm(Standard)/8mm(Wide angle)

Measured distance: 150mm~infinity(standard)/350mm~infinity(wide angle)

Measured size:

        Normal lens:Measurement size in 0.5m≥80mm*59mm,about 3.6 inches;

        Wide angle lens:Measurement size in 0.5m≥364mm*287mm,about 17inches;

CCD pixel: ≥3000*2700

Computer port: USB 3.0

Working conditions: Temperature: 0~35 °C; humidity: <70%(No dew)
