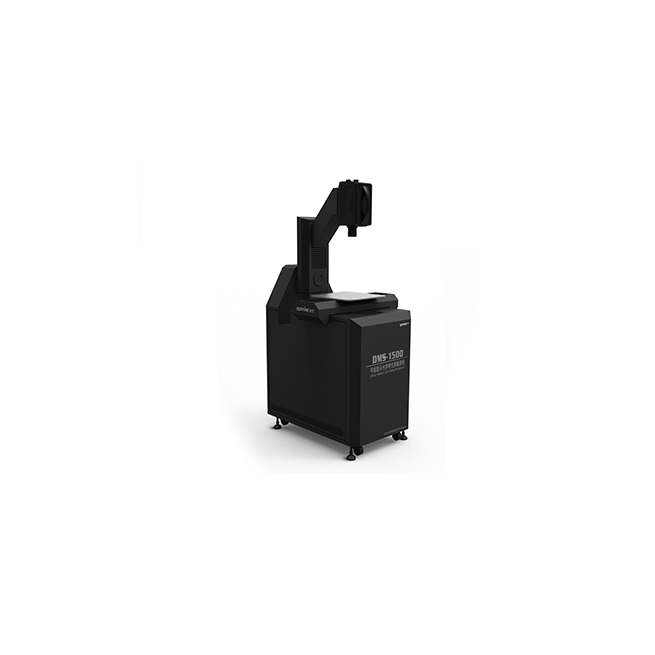

EVERFINE DMS-1500 智能手机和平板电脑光学性能测试系统

Sample: Horizontal placement

X translation: ±180mm

Y translation: ±180mm

Z translation: 350mm~600mm adjustable

Translation resolution: 0.01mm

Fixture: Clamping device can perform pitch adjustment

Alignment device: Software auto-alignment can be achieved by the cross laser alignment device and the line laser alignment itself.

Monitoring: Video monitoring system

Optical test instrument: SRC series spectral color luminance meter, CX series imaging  luminance meter, and etc.

Test speed: Quick, medium and slow for choice

Rotation Phi (H axis): -90° ~ +90°

Inclination Theta (V axis): -90°~ +90°

Angle Resolution: ±0.1°

Signal generator: Android mobile phone install remote special graphics swiching software, computer graphics card HDMI, VGA, DVI and other output, Windows system image signal generating software, customer's signal driver and etc.

Response time and  flicker: The quick response tester is equipped to realize the response time and the flicker test.

Power supply: High precision precision DC power supply and electrical parameter tester

Darkroom: Metallic dark box
