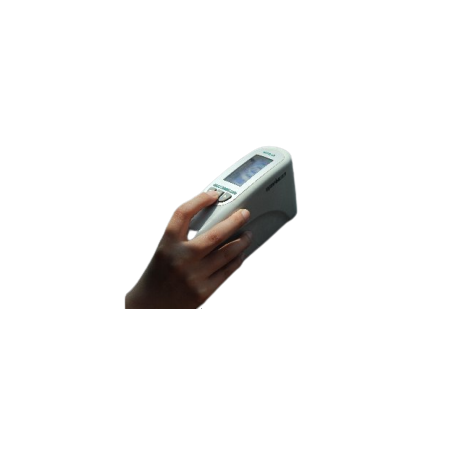

EVERFINE MTG-2 Micro Tri-geometry Gloss Meter

Measurement Angle: 20 degrees, 60 degrees, 85 degrees

Measurement spot size:

        Gs (20°) : 10mm×10mm;

        Gs (60°) : 9mm×15mm;

        Gs (85°) : 5mm×38mm

Measurment range:

        Gs (20°) : 0.1-2000Gu;

        Gs (60°) : 0.1-1000 GU;

        Gs (85°) : 0.1-160 GU;

The resolution of GU: 0.1-200 GU: 0.1Gu; 200-2000 GU: 1 GU

Measurement mode: Basic measurement, sample measurement, statistical measurement, continuous measurement mode

Zero error: 0.1 GU

Measurement error: ±1GU (0-100gu); ±1% reading (>100GU)

Repeatability: 0.1-200 GU: ±0.2GU; >200: ±0.2% reading;

Data transmission mode: USB

The power supply: #5 battery * 2

Size (length × width × height): 160 * 52.5 * 90 mm(L*W*H)
