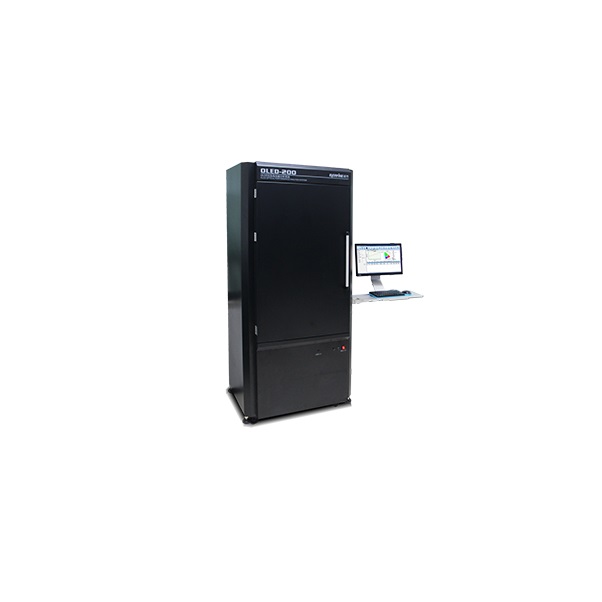

EVERFINE OLED-200 OLED 光电性能分析系统

Luminance index (Illuminant A):

Measurement range: 0.00005cd/m2~ 4000000cd/m2

Accuracy: ±(2% reading +1 words)

Viewing angle: 2 degree /1 degree /0.1 degree for choice

Chromaticity index (Illuminant A):

Wavelength range: 380nm ~ 780nm

Wavelength accuracy: ± 0.3nm

Measurement distance: 0.35m ~ 0.6m

Chromaticity coordinates accuracy: ±x, y: 0.0015,0.001 (Illuminant A)

Precision Power Supply Specifications:

Maximum output: 50V@1A

Current range: 1A/100mA/10mA/1mA/100uA

Voltage range: 50V/20V/10V/5V

Current output accuracy: ± (0.2% Set + 0.1% range).

Current measurement accuracy: ± (0.1% reading + 0.1% range).

Pulse width: 0.1ms-9999 ms

Software function:

Luminance

Voltage/current-luminance curve

Current-voltage curve

Current efficiency (cd/A) and current density (A/cm2).

External quantum efficiency
