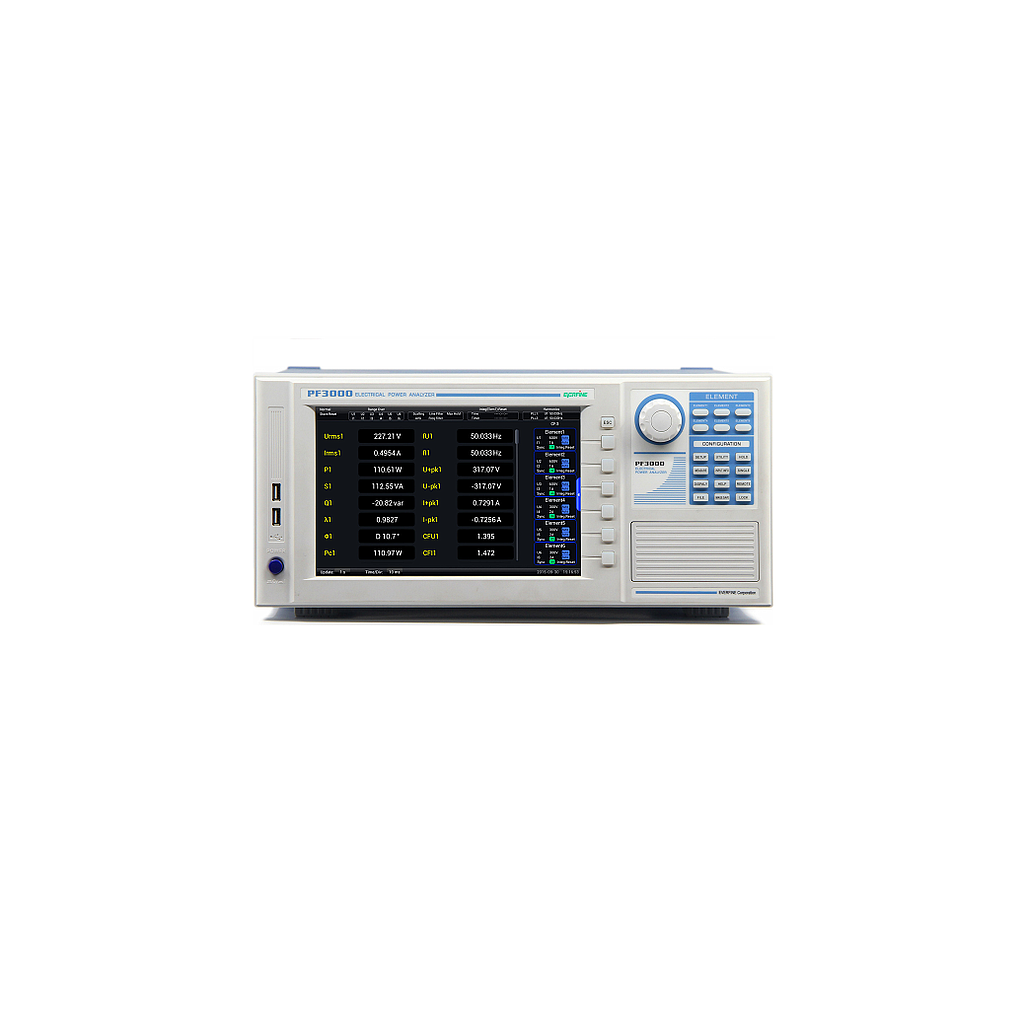

EVERFINE PF3000 高精密电子功率分析仪 (300V, 20A)

Input Element: Element1 ~ Element4 is optional ,maximum 4+1 channels

Measuremnet range

Voltage:

        CF3:1.5/3/6/10/15/30/60/100/150/300/600/1000[V]

        CF6:0.75 / 1.5/3/ 5 /7.5 /15/30/ 50/ 75 /150/300/ 500[V]

current:

Direct input:

    5AElement:

        CF3:10m / 20m / 50m / 100m / 200m / 500m / 1 / 2 / 5 [A]

        CF6:5m / 10m / 25m / 50m / 100m / 250m / 500m / 1 / 2.5 [A]

    20AElement:

        CF3:500m / 1 / 2 / 5 / 10 / 20 [A]

        CF6:250m / 500m / 1 / 2.5 / 5 / 10 [A]

    30AElement:

        CF3:500m / 1 / 2 / 5 / 10 / 30 [A]

        CF6:250m / 500m / 1 / 2.5 / 5 / 15 [A]

    50AElement:

        CF3:500m / 1 / 2 / 5 / 10 / 50 [A]

        CF6:250m / 500m / 1 / 2.5 / 5 / 25 [A]

    External current sensor input:

        CF3:50m / 100m / 200m / 500m / 1 / 2 / 5 / 10 [V]

        CF6:25m / 50m / 100m / 250m / 500 / 1 / 2.5 / 5 [V]

Frequency: DC,0.1Hz~500KHz,Bandwidth:5MHz(-3dB,typical)

Sample rate: 1Ms/s

Measurement Accuracy: 0.05%rdg(Reading)+0.05%rng(Range)

Range switch:

        Fixed /Auto range is selected ,

        Range can be independent set for each input element .

Filter:

        Line Filter:OFF、500kHz、5kHz、50kHz

        Frequency filter:OFF、100Hz or1kHz

A/D Converter: Resolution:16bit;Sampling time :500ns
