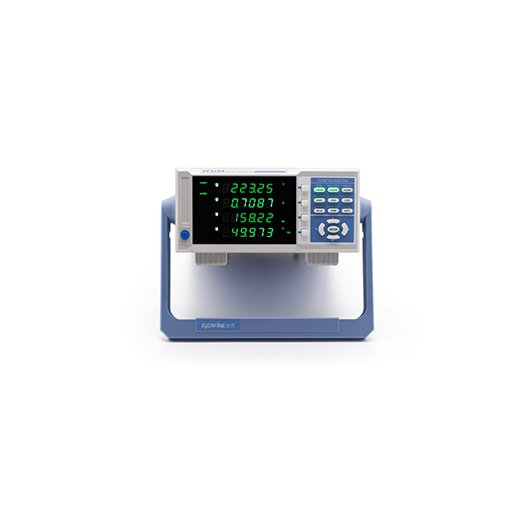

EVERFINE PF310A 数显功率计 (600V, 20A, 100kHz)

InputRange (RMS)

Voltage

    Direct input:

        CF=3:15V/30V/60V/150V/300V/600V

        CF=6:7.5V/15V/30V/75V/150/V300V

Current

    Direct input:

        CF=3:5mA/10mA/20mA/50mA/100mA/200mA/0.5A/1A/2A/5A/10A/20A

        CF=6:2.5mA/5mA/10mA/25mA/50mA/100mA/0.25A/0.5A/1A/2.5A/5A/10A

    External input:

        CF=3:2.5V/5V/10V

        CF=6:1.25V/2.5V/5V

Frequency range: DC,AC0.5Hz ~ 100kHz

MeasurementAccuracy: ±(0.1%Reading+0.05%Range)

DataIndication RefreshRate: 0.1S、0.25S、0.5S、1S、2S、5S

Filter

        Line Filter: OFF,500Hz or 5kHz are selected

        Frequency Filter:OFF,500Hz or 5kHz are selected

Communication: USB(standard),RS-232/RS485/GP-IB/LAN/CAN(optional)
