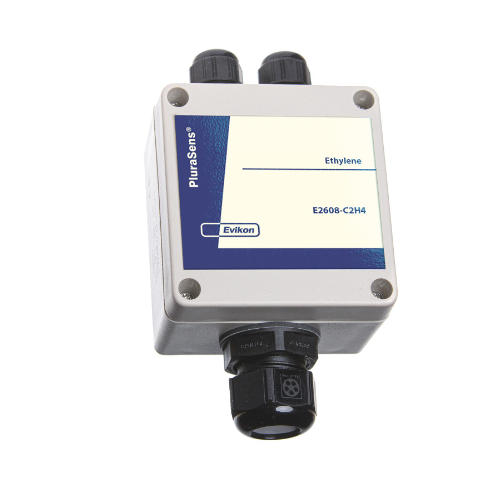

Evikon E2608-C2H4 乙烯检测变送器 (0~1500 ppm C2H4)
制造商: Evikon Model: E2608-C2H4 - 联系
Calibration: ethylene C2H4
Sensor type: electrochemical
Sampling method: Diffusion
Detection range: 0...10 ppm C2H4
0...200 ppm C2H4
0...1500 ppm C2H4
Resolution: 0.1 / 1 / 1 ppm C2H4
Repeatability: < 2 % of signal
Sensor lifetime: > 2 years
Power supply: 12...36 VDC (default), 24 VAC or 230 VAC as options
Digital interface: RS485, Modbus RTU protocol
Analog outputs: 2 × 4-20 mA / 0-10 V, user settable
Output relays: 2 × SPST relays (closing contact)
250 VAC / 30 VDC, 5 A max
Enclosure: grey ABS plastic, wall mount, IP65
Dimensions: H85 × W82 × D55 mm
Operating conditions: -20...+50 °C, 15...90% RH, with humidity compensation up to 100 %RH
