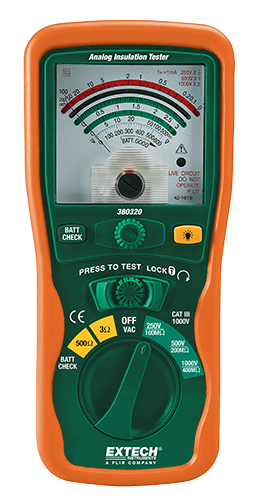

EXTECH 380320 模拟绝缘测试仪

Test Voltage: 250V/500V/1000V

Insulation Resistance: 0 to 100MΩ, 0 to 200MΩ, 0 to 400MΩ

Accuracy: ±5% of scale

AC Voltage: 0 to 600V

Accuracy: ±5% of scale

Resistance: 1 to 500Ω

Accuracy: ±3% of scale

Continuity: 3Ω

Accuracy: ±3% of scale

Dimensions: 7.9 x 3.6 x 2” (200 x 92 x 50mm)

Weight: 1.2lbs (546g) includes batteries

Complete with heavy duty test leads, alligator clip test lead, 6 x AA batteries, hanging strap, and hard carrying case

Details

Features:

  • Large easy to read analog display
  • Three test voltages 250V, 500V, and 1000V
  • Insulation Resistance to 400MΩ
  • Lock Power On feature for extended test times
  • Automatic discharge circuit
  • Measures continuity to 3Ω, Resistance to 500Ω, and AC Voltage to 600V
  • 1.3mA short circuit current
  • Complete with test leads, 6 x AA batteries, hanging strap, and hard carrying case
