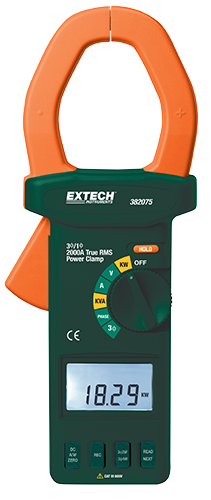

EXTECH 382075 真有效值交流/直流三相钳位功率分析仪

  • 制造商: EXTECH
    Model: 382075
    来源: Taiwan
    • 报价要求 报价要求
  • Price (exclude tax) 13,113,000 VND
    Price (include tax) 14,424,300 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




True RMS Power (W): 1200kW  /0.01/0.1kW  /±2%

Reactve (KVAR) Power:  1200KVAR /0.01/0.1KVAR  /±2% (PF<0.91)

Apparent (KVA) Power: 1200KVA /0.01/0.1KVA /±2%

Power Factor (PF): 0.2 to 1 /0.01 /PF=W/(VxA)

Phase Angle (f): -90° to +90° /0.1° /±0.5°

AC/DC Current: 2000A /0.1/1A /±2%

AC/DC Voltage: 600VAC/800VDC /0.1/1V /±2%

Frequency: 40 to 400Hz /0.1Hz/ ±1%

Dimensions/Weight: 271 x 122 x 46mm / 24.7oz (700g)

Complete with test leads, carrying case, and 9V battery



Details

Features:

  • Display Lead/Lag Current/Voltage phase shift in degrees
  • Store/recall last 5 readings
  • DC Current Auto-Zero
  • Dual displays: kW+PF, kVA+kVAR, phase-angle+Hz, Volts+Hz, or Amps+Hz
  • Advanced Relative and Min/Max functions

Manual

Datasheets

Catalog 2020
