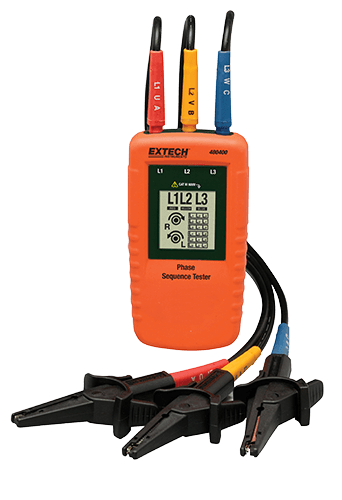

Extech 480400 相序测试仪

Range test 40 to 600VAC

frequency range:15 to 400Hz

Graphical multiline LCD

No battery required

Dimensions: 5.1 x 2.7 x 1.25" (130 x 69 x 32mm);

Weight: 4.5oz (130g)

Complete with cable, three large color coded  alligator clips, and pouch case



Detail

Features:

  • 40 to 690VAC rated test range for testing phase orientation of three phase power sources over 15 to 400Hz frequency range
  • Graphical multiline LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
  • Durable housing is double molded
  • Easy to open alligator clips with wide jaws
  • Tests phase orientation of three phase power sources
  • Dimensions: 5.1x2.7x1.25" (130x69x32mm); Weight: 4.5oz (130g)
  • Complete with cable, three large color coded alligator clips, and pouch case
  • CAT III-600V; CAT IV-300V
  • No battery required
  • IP40 Splashproof Housing
