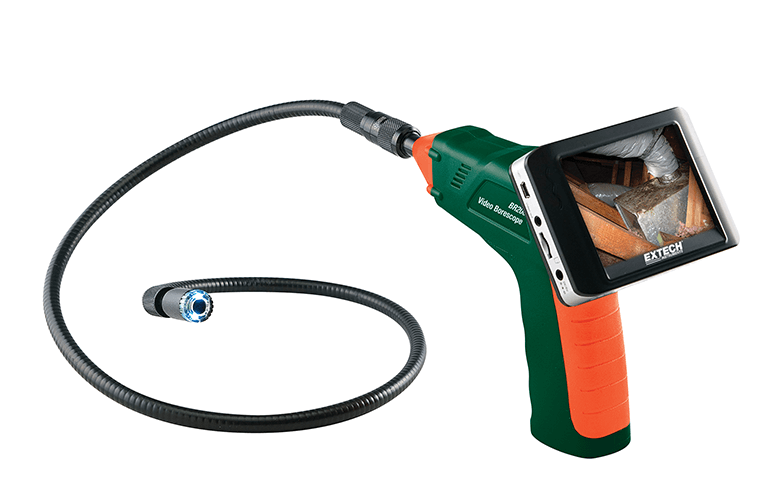

Camera
- Pixels: 712 x 486 (NTSC)
- Transmission Frequency 2.4GHz
- Transmission Range 32ft (10m) unobstructed view
- Viewing direction Viewing Angle 50°
- Focus distance from object 5.9" to 9.8" (15 to 25cm)
- Shaft diameter 0.66" (17mm)
- Working length 39" (1m)
- Minimum bend radius 2.36" (60mm)
- Handle Dimensions 7.3 x 5.7 x 1.6" (186 x 145 x 41mm)
- Weight 18.7oz (530g)
Monitor
- LCD Screen Type 3.5" TFT
- Pixels 320 x 240
- Video Output Level 0.9 to 1.3V@75Ω
- Frame Rate 10, 15, 20, 25, 30FPS
- Video Resolution 960 x 240 (avi format)
- Image Resolution 640x 480 (jpeg format)
- Monitor Dimensions 3.9 x 2.7 x 1" (100 x 70 x 25mm)
- Operating/Charge Time 1.5 hours/3 hours
- Weight 4.9oz (140g)
Complete with 4AA batteries, rechargeable display battery, microSD card with adaptor, USB and video cable, extension tools, 100-240V AC adaptor, stand and case
Lựa chọn mua thêm
BR-9CAM ............Replacement 9mm Borescope Camera Head with 1m Cable
BR-9CAM-2M......Replacement 9mm Borescope Camera Head with 2m Cable
BR-9CAM-5M......Replacement 9mm Borescope Camera Head with 5m Cable
BR-17CAM ..........Replacement 17mm Borescope Camera Head with 1m Cable
BR-17CAM-2M....Replacement 17mm Borescope Camera Head with 2m Cable
BR-17CAM-5M....Replacement 17mm Borescope Camera Head with 5m Cable
