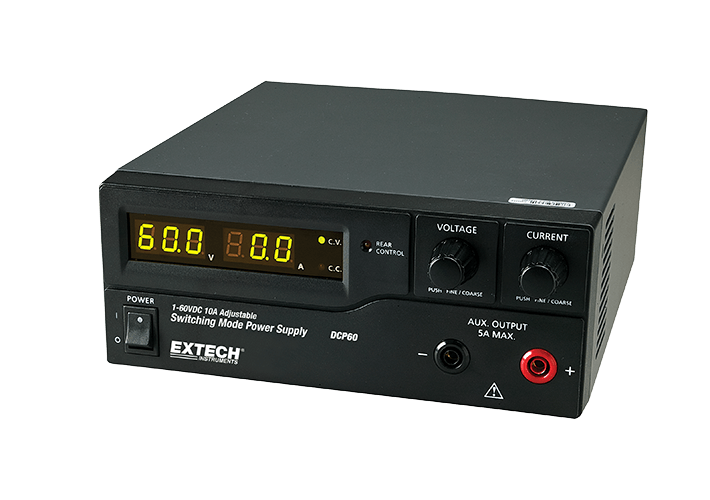

EXTECH DCP60-220 开关电源(1-60V / 1-10A)

  • 制造商: EXTECH
    Model: DCP60-220
    来源: China
    • 报价要求 报价要求
  • Price (exclude tax) 9,141,500 VND
    Price (include tax) 10,055,650 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Designed for Laboratory use but excellent for bench technicians
, engineers, and educational facilities
60V/10A output
Maximum current can be limited to 5A using the auxiliary output
on the front panel (10A main output is on the back panel)
Three user-defined Voltage and Current presets
Dual action rotary encoder control with push knob for fine and coarse tuning
Remote control for Output VoltageCurrent and On/Off
Complete with power cords
Specifications
+ Output Voltage 1 to 60V
+ Output Current 1 to 10A
+ Basic Accuracy ±(0.2%+3 digits)
+ Load Voltage Regulation 50mV
+ Line Voltage Regulation 20mV
+ Load Current Regulation 100mA
+ Line Current regulation 50mA
+ Ripple and Noise ≤5m Vrms, ≤100m Vp-p

Power Suppy: 220VAC
+ Dimensions/ Weight 7.9 x 3.5 x 8.5” (200 x 90 x 215mm)/ 5.7lbs (2.6kgs)


Chi tiết

Catalog

Manual

DCP60-220: 600W Switching Power Supply (220V)

High Efficiency Switching Power Supply with Low Ripple and Noise

Features:

  • Designed for Laboratory use but excellent for bench technicians, engineers, and educational facilities
  • 60V/10A output
  • Maximum current can be limited to 5A using the auxiliary output on the front panel (10A main output is
  • on the back panel)
  • Three user-defined Voltage and Current presets
  • Dual action rotary encoder control with push knob for fine and coarse tuning
  • Remote control for Output VoltageCurrent and On/Off
  • Complete with power cords
